Gardena Water Control Flex Timer

– User Manual

An automatic, time-saving irrigation system, the Gardena Water Control Flex Timer is perfect for watering potted plants when you’re not there, due to the extra short watering durations that can be activated up to 6 times a day. Connect your water control to a Micro-Drip system or sprinkler for automatic, convenient watering. With the help of the innovative, external control dial and the press button you can set the start, length and interval of the irrigation via the easy-to-read LCD screen. The weather-resistant and battery-operated control unit is even detachable. Since potted plants in particular have a limited soil volume due to their planters, they need short irrigation cycles.

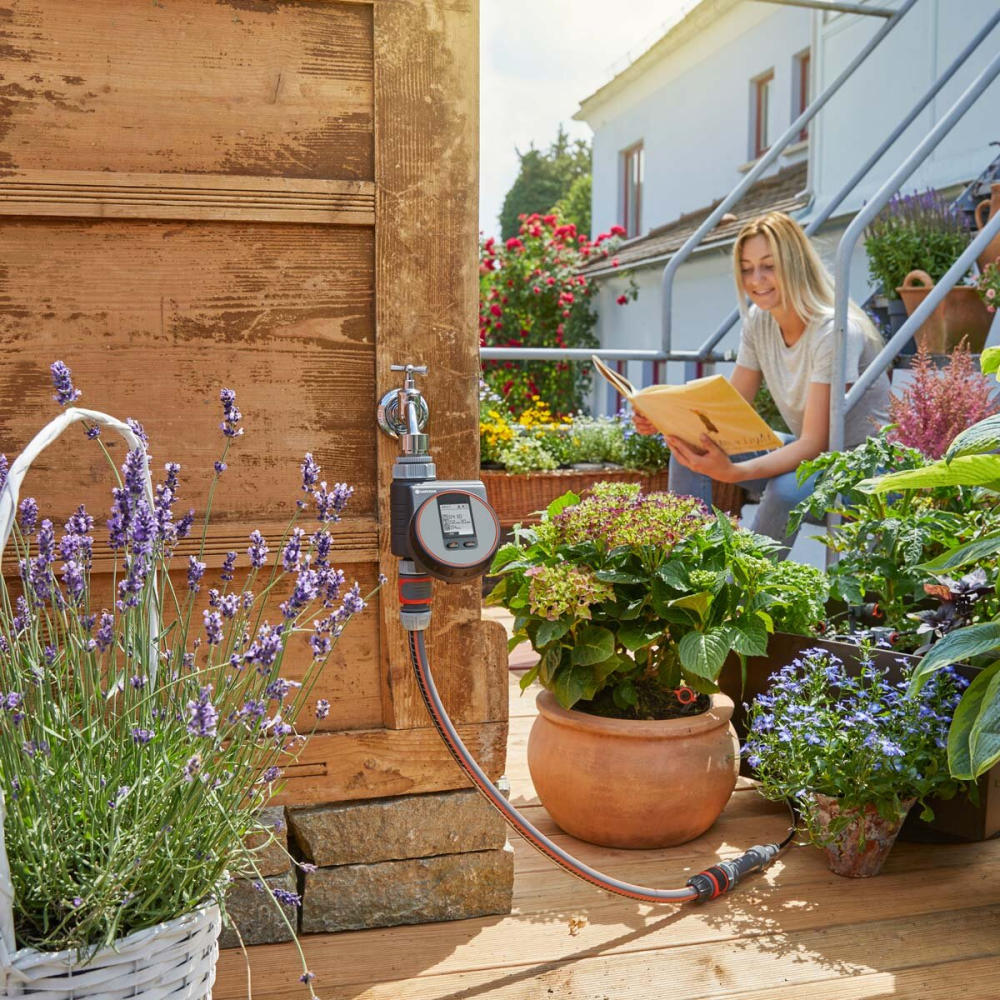

Connect the weather-proof unit directly to the tap, then set your watering schedule. Powered with a 9V battery the “Water Now” function you can draw water from the tap quickly and easily without having to remove the control unit. The Safe Water Stop Technology ensures that the next scheduled irrigation is not started when battery power is low. This function protects you from uncontrolled water leakage.

Features

– Allows for timed watering for up to 6 times a day
– Will automatically stop watering if battery level is low

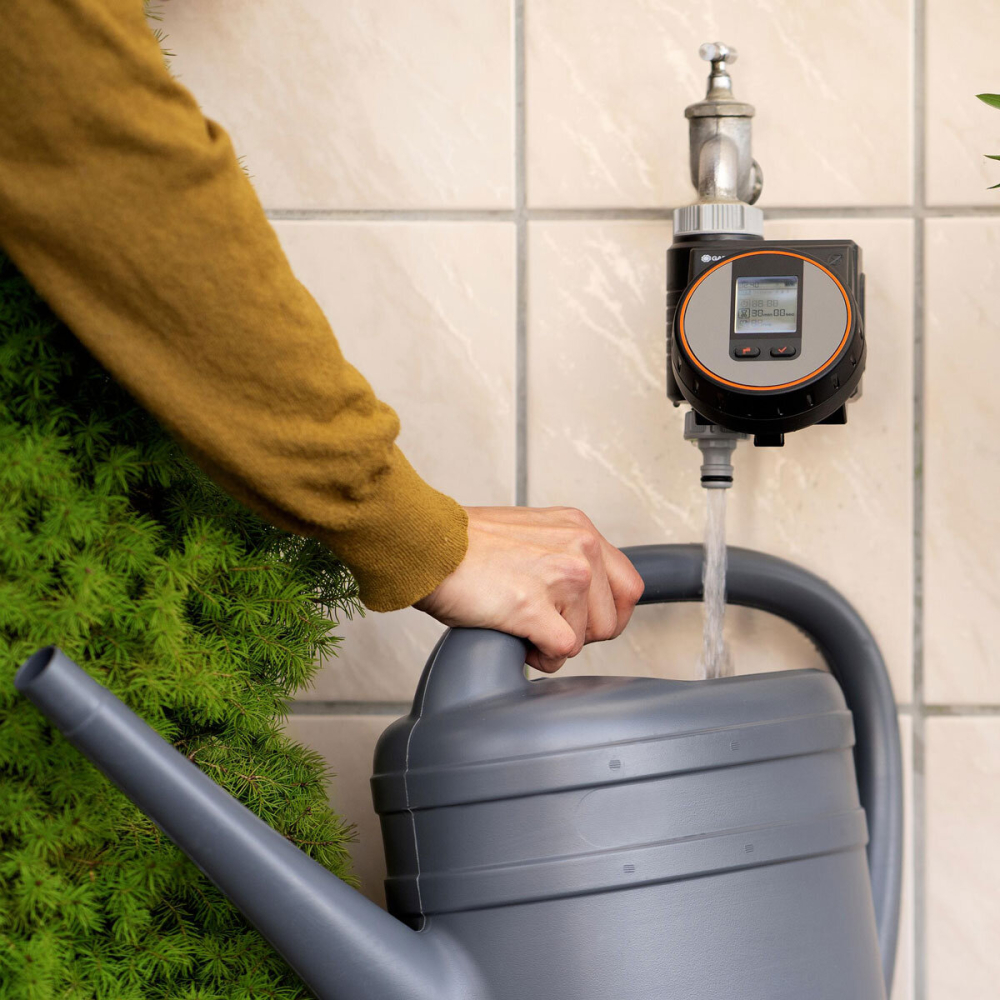

– Water now function allows for continuous water flow from the tap without removing the control panel
– Can be used in conjunction with the Gardena Micro-Drip Irrigation kit, as well as the Gardena Aquazoom Oscillating Sprinkler
– Weather proof

Specifications

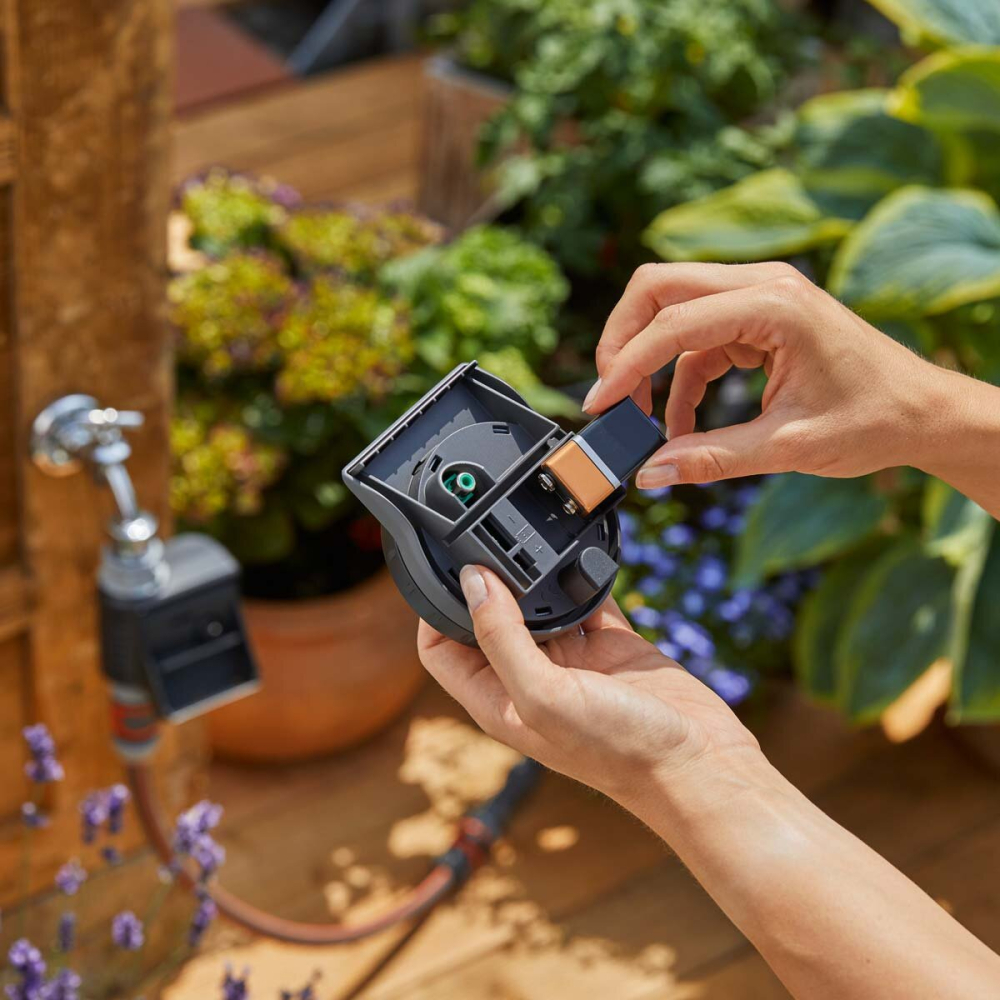

– Energy Supply: 1 x 9V battery(not included) – available here
– Watering Duration: 1 second – 99 minutes
– Watering Frequency: Every 4, 6, 8, 12, 24, 48, and 72 hours
– Operating Pressure (min-max): 0.5 – 12 bar
– Thread: For taps with 26.5 mm and 33.3 mm thread
