Integral Crosscube 4-Way Outdoor Wall Light Pack of 2

– Installation Manual

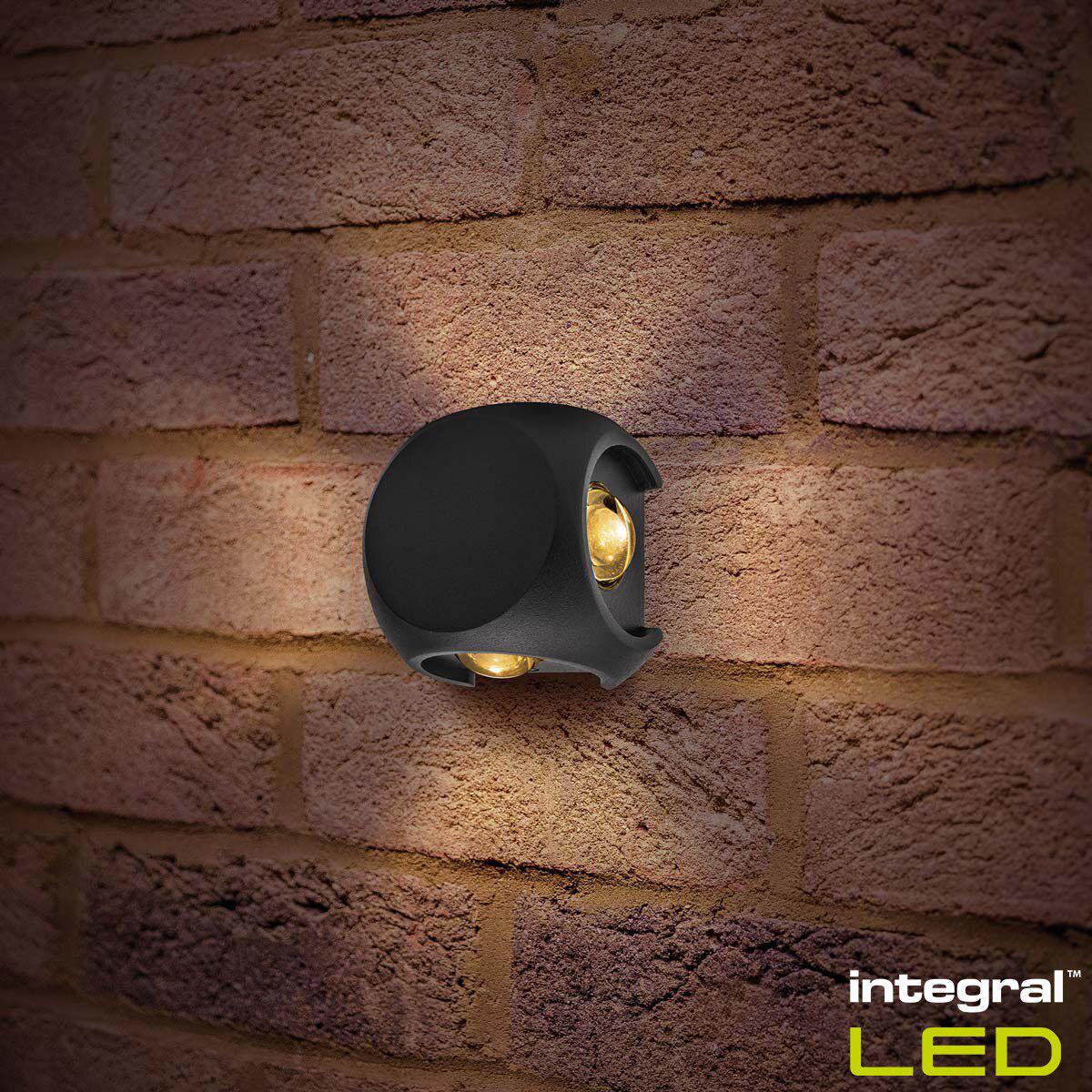

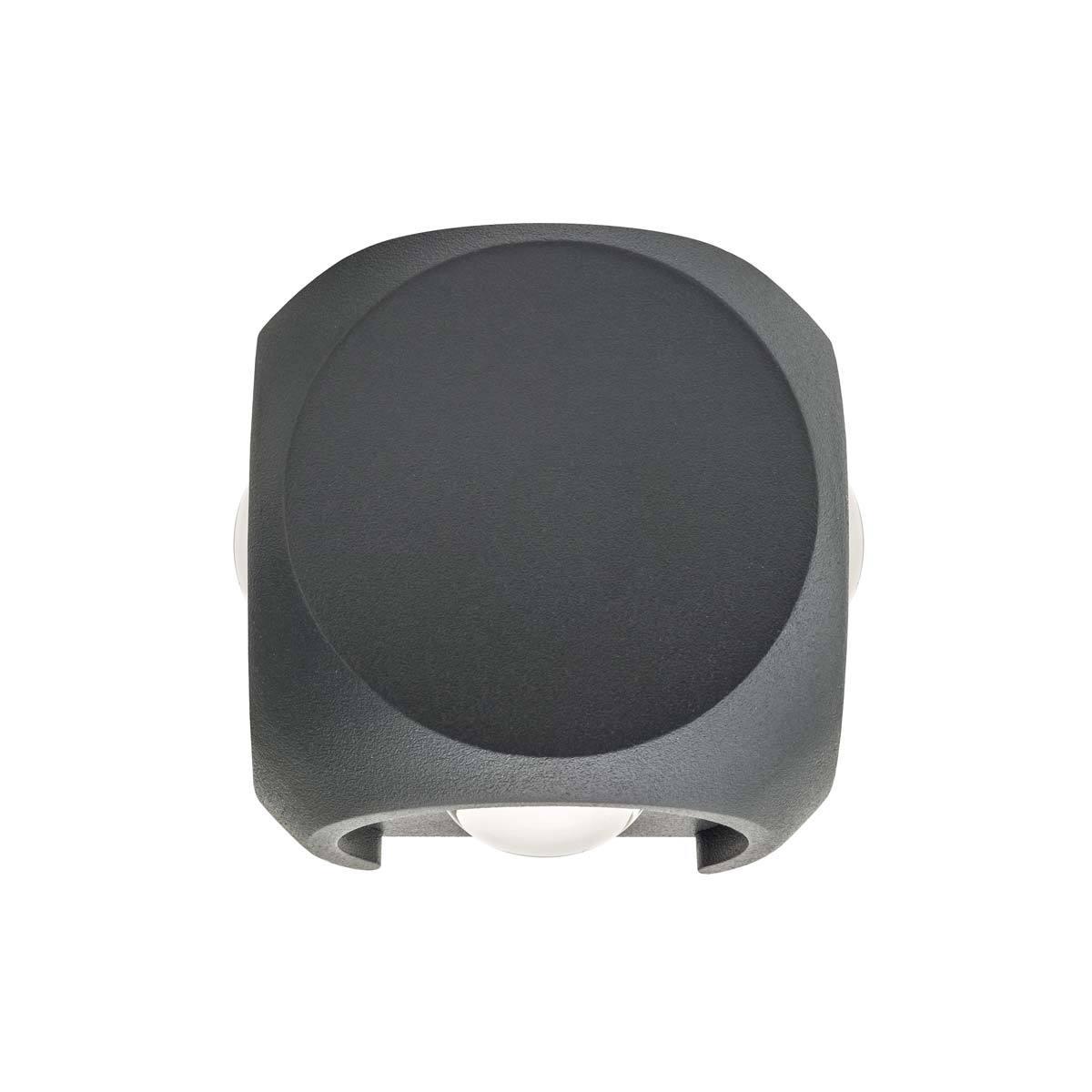

A wide range of decorative light patterns is possible with the Crosscube. This compact, cube-shaped luminaire features 4-way LEDs that wash the wall with a pleasing conical beam. Multiple units spaced across a wall will create intersecting light patterns that will add a wow factor to any exterior facade.

Features:

Please note: Installation is not provided for this item

Installation must be completed by a qualified electrician in accordance with recognised local and national electrical and construction regulations.

– Luminaire Fixing: Wall Mounted
– Power Consumption: 8.0 Watts
– Driver included: Yes
– Electric Current: AC
– Frequency Range: 50/60 Hz
– Power Factor: >=0.50
– Dimming: Non-dimmable
– LVD Certified: Yes
– Lumens: 360lm
– Lumens per Watt: 45.0lm/W
– Beam Angle: 45°
– Correlated Colour Temperature (CCT): 3000k
– Colour Temperature: Warm White
– Colour Rendering Index (CRI): >=80
– LED Manufacturer: CREE
– LED Type: Surface mounted device (SMD)
– Instant on – Less than 1 second: Yes
– Lifetime: 25,000 hrs
– Lowest Operating Temperature: -20 degrees
– Maximum Operating Temperature: 40 degrees
– Optic: Toughened Glass
– Material: Die-cast aluminium body with powder-coated finish
