1000V Digital Insulation and Continuity Tester-
£150.99
In stock
In stock
-
Manufacture Warranty 1 year
-
Fast & Secure Shipping
-
Free 30-Day returns
-
Authentic Branded Product




Payment Methods:

Description
Product Overview

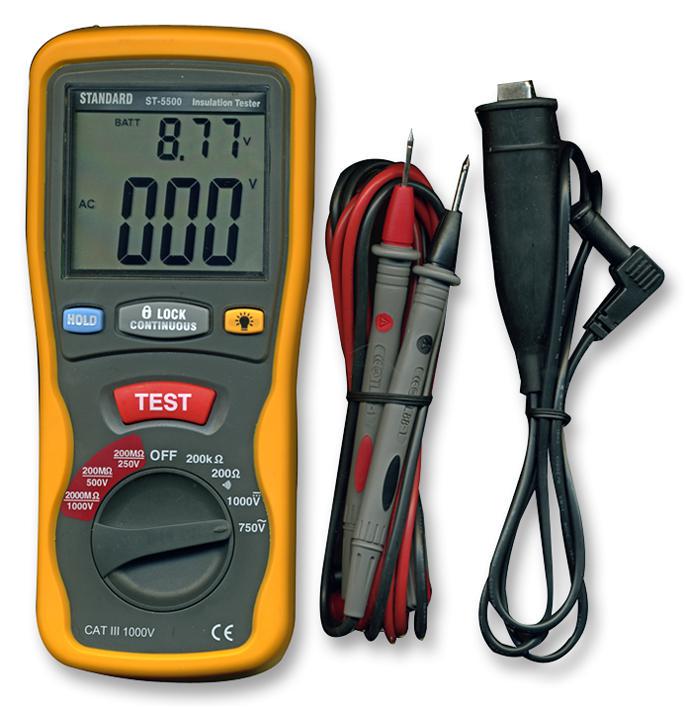

TEN01053 is a 1000V digital insulation and continuity tester. It includes measurement ranges are 200 ohm, 200Kohm, 200Mohm/250V, 200Mohm/500V, 2000Mohm/1000V, 750V/ACV, 1000V/DCV. The low battery symbol is displayed when the battery voltage drop below the operating voltage.
– Large LCD, dual display with backlight
– 250V/500V/1000V test voltage selection for MR testing
– AC/DC voltage measurement, low R function for testing connections
– Data hold, large Test button and output voltage lock
– Continuity buzzer, over range indication, low battery warning
– Installation categories III, pollution degree 2, altitude up to 2000meters
– Indoor use only, relatively humidity 80% max
– 2.5 times per second sampling rate, automatic zero adjustment
– Number 1 of highest digit is displayed, DC9V (6×1.5V Size AA battery or Equivalent) power source
– Operating temperature range from 0°C to +40°C, dimension (Lx W x H) is 200 × 92 × 50mm
Contents
Tester, Test leads, 6x AA batteries, Hard plastic carry case.
Footnotes
Indoor use only
- Insulation Tester Type: Digital Megohmmeter
- Insulation Testing Voltage: 200V to 1kV
- Insulation Testing Resistance: 200Mohm to 2Gohm
- Operating Temperature Min: 0C
- Operating Temperature Max: 40C
- External Height: 200mm
- External Width: 92mm
- External Depth: 50mm
- Weight: 700g
- Manufacturer: TENMA
- Manufacturer Part No: TEN01053
- Order Code: IN05462
- Product Range View the full series and range associated to this part:
- Technical Datasheet: TEN01053 Datasheet
Specification
Overview
Dimensions | 7.87 × 3.62 × 1.97 cm |
---|---|
Brand |
TENMA |
