1MHz USB Function Generator-

Product Overview

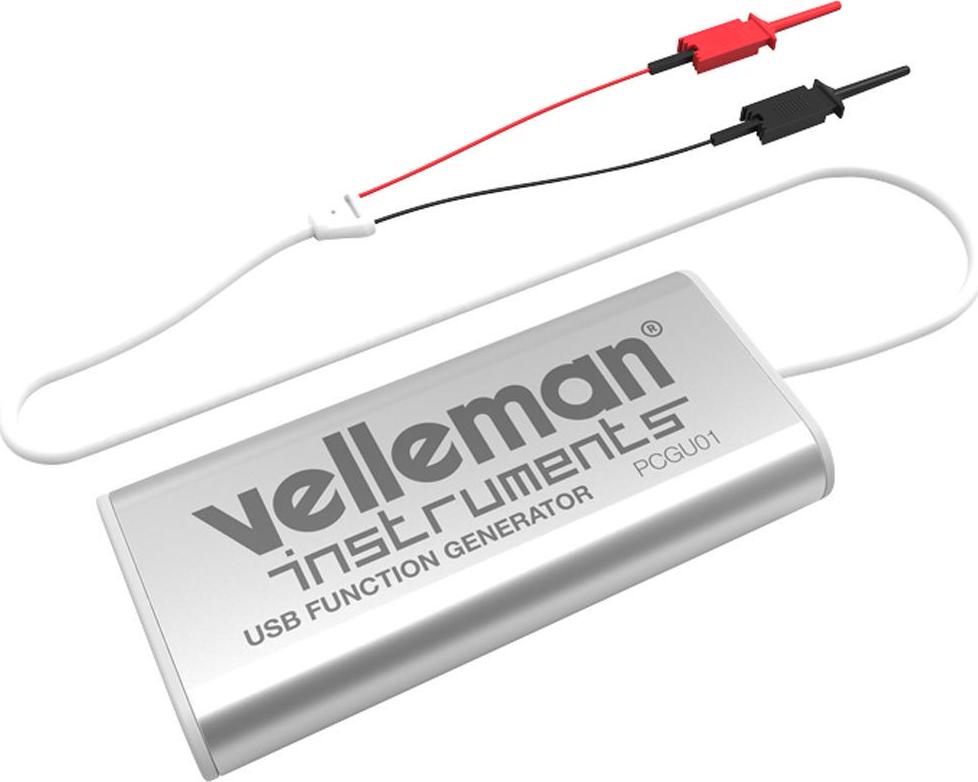

Simple-to-use PC USB miniature function generator with a frequency range of up to 1MHz. Generates sine, square and triangle waveforms, has a DAC resolution of 10-bits and an output of 0.2-10Vpp.

– Download the free Windows software to control the various signals
– Includes an automated wave sequence generator
– Design enclosure
– Includes test leads and USB cable
– Sweep function
– Amplitude range: 200mVpp to 10Vpp @ 1kHz, no load, 0V offset
– Amplitude range with offset: 200mVpp to 7.5Vpp @ 1kHz, no load, -2.5V to +2.5V offset
– Offset range: 0 to -2.5V or +2.5V max. (resolution 0.5% of full scale)
– Typical sine wave distortion (THD): 0.02% @ 1kHz, 0dB, 600
– Square wave rise/fall time: 0.2µs
– Output impedance: 50
