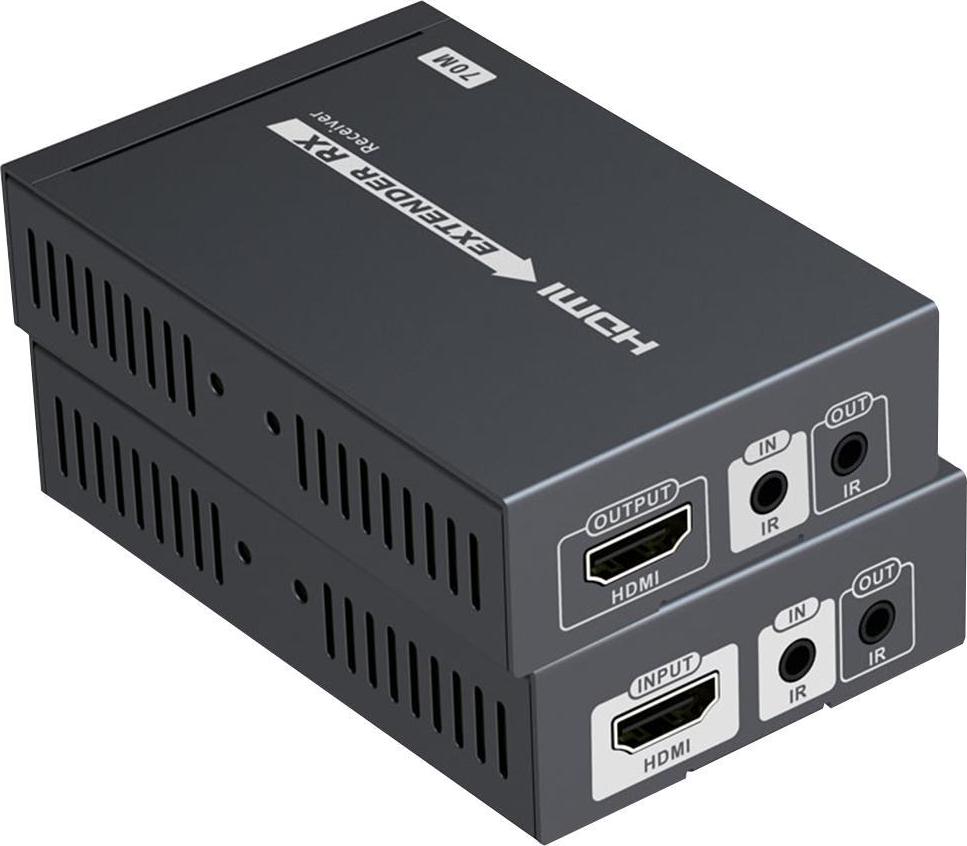

4K UHD HDMI over Cat5e / Cat6 HDBaseT Extender with IR, 70m-

Product Overview

The PSG3080 from Pro Signal allows you to easily extend a high definition HDMI signal over a single Cat5e/6/7 network cable to take advantage of existing infrastructure or cost-effective cabling. The extender supports Cat6 cable runs up to 40m for 4K UHD resolution, or up to 70m for 1080p Full HD resolution. With plug & play installation and built-in IR support, the extender provides a convenient AV distribution solution for home theatres, commercial and educational applications.

– Supports 4K UHD @60Hz (4:2:0) cable runs up to 40m with Cat6 cable, up to 35m with Cat5e
– Supports 1080p Full HD (60Hz) cable runs up to 70m with Cat6 cable, up to 60m with Cat5e
– Resolution support from 480i @60Hz up to 4Kx2K @24/25/30/60Hz (4:2:0)
– HDCP, CEC, 3D and 24-bit deep colour support
– Supports DTS-HD, Dolby TrueHD and LPCM audio
– Built-in IR extender function allows for remote IR control (2x receivers included)
– Dimensions (HxWxD): 23x99x67mm (each)

Contents

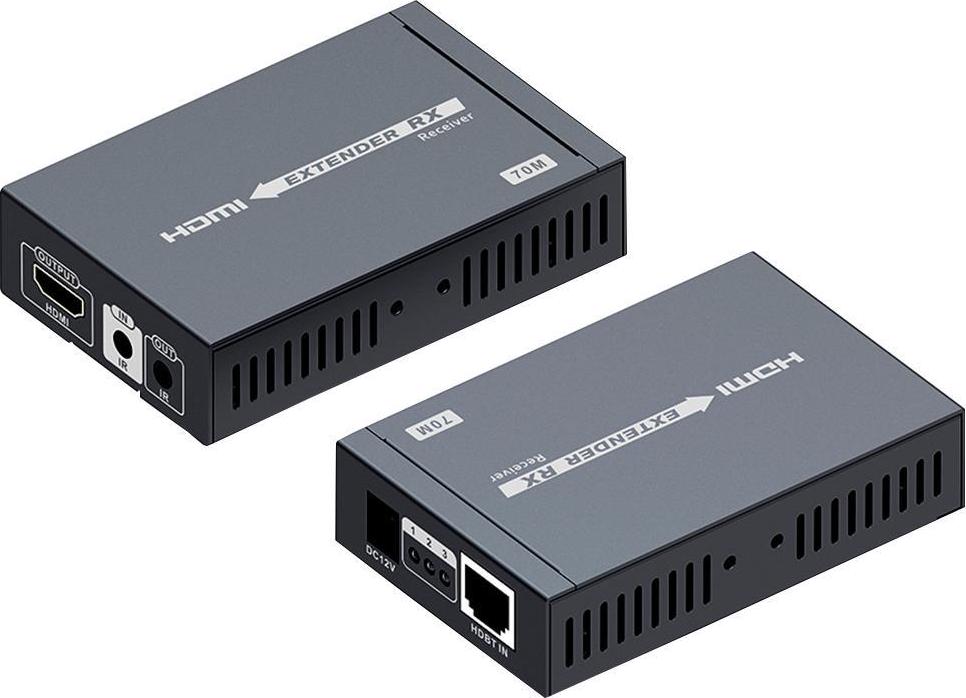

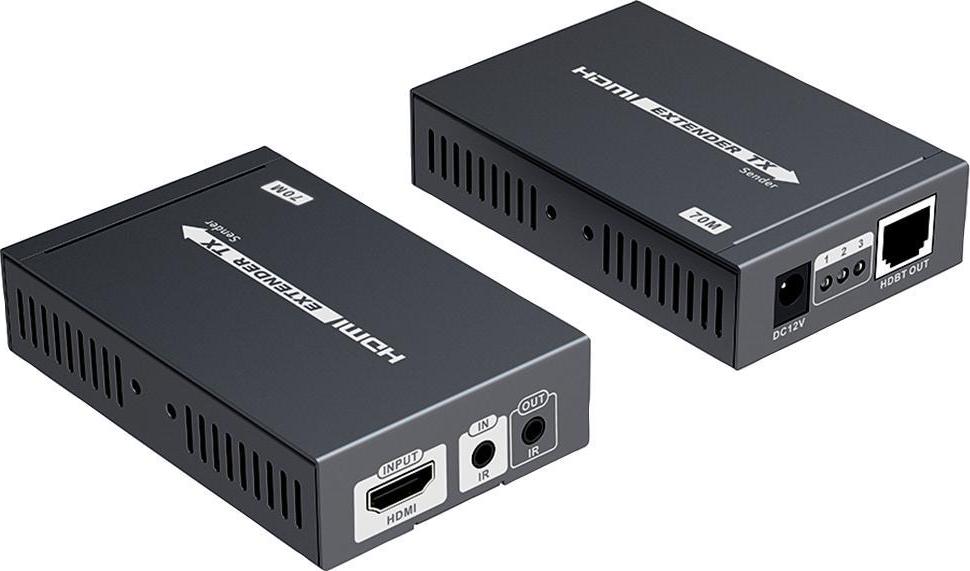

Transmitter, receiver, 2x AC adaptor, 2x IR receivers and user guide
