4×4 4K UHD 60Hz HDMI 2.0 Matrix Switch-

Product Overview

The PSG3532 is a high performance HDMI distribution system, allowing you to easily switch between four HDMI sources and four HDMI outputs in any arrangement. Supporting resolutions up to 4K Ultra HD with HDR10, the switch delivers stunning image quality to every connected display.The switch provides intuitive and convenient control options with a wireless IR remote, physical switching buttons and support for RS232 command systems.

– Supports HDMI 2.0 resolutions up to 4K UHD @60Hz with HDR & YUV 4:4:4
– Dolby Digital Plus, Dolby Digital 7.1, Dolby TrueHD, Dolby Atmos, DTS/DTS-HD and LPCM 7.1 audio format support

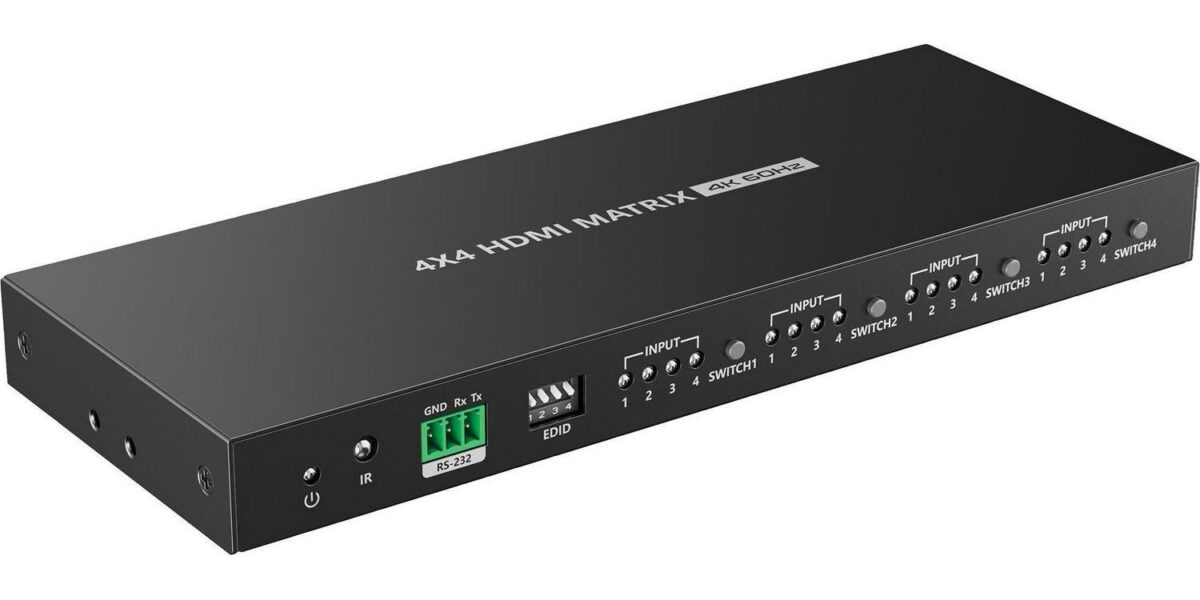

– Intuitive control via wireless IR remote, switching buttons and RS232 commands
– Maximum transmission bandwidth up to 18Gb/s
– Any two of the four HDMI outputs can support automatic downscaling
– EDID passthrough with DIP switches for manual settings, provides 16 settings
– HDMI 2.0 and HDCP 2.2/HDCP 1.4 compliant
– Durable metal housing with Lightning and surge protection
– ESD protection: Contact discharge (±4kV), Air discharge (±8kV)

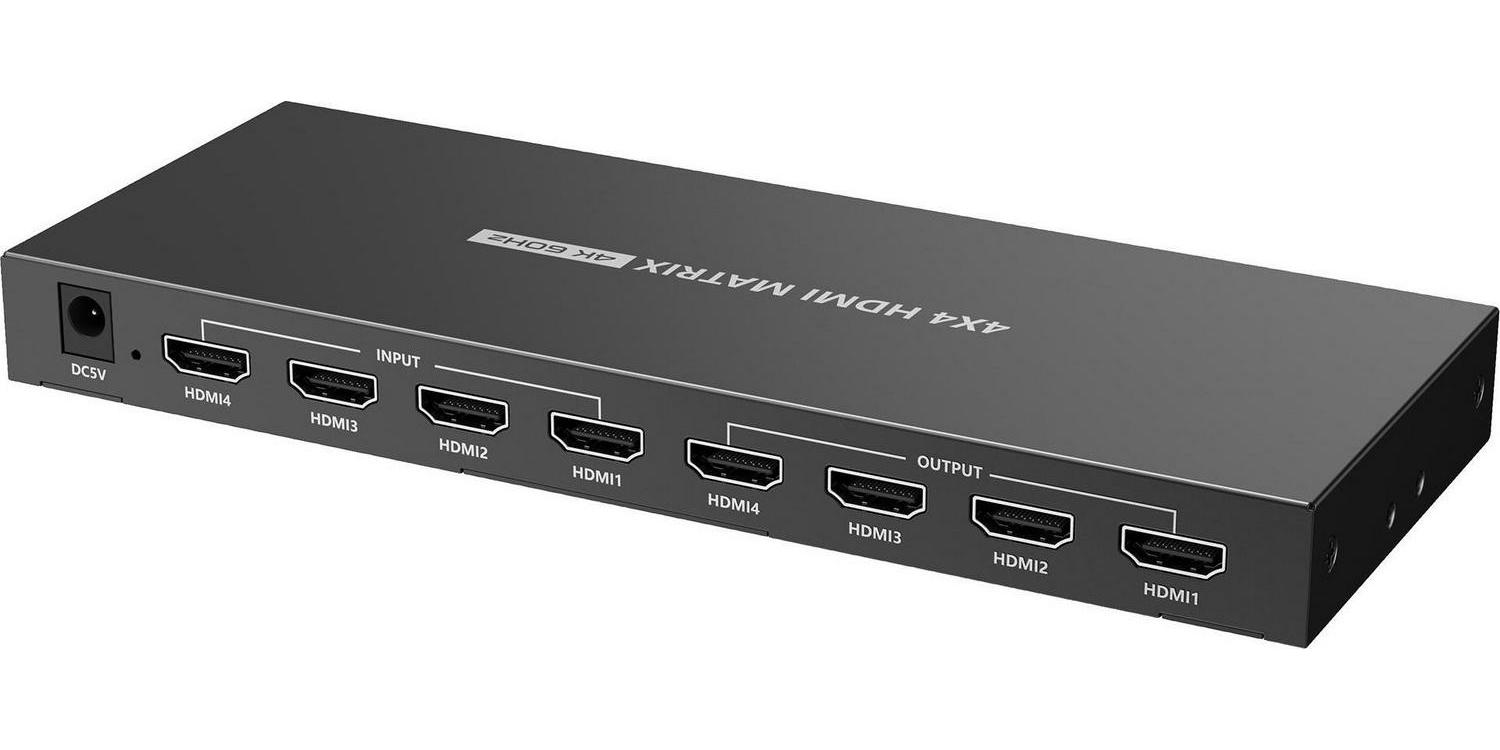

– Connections: 4x HDMI in, 4x HDMI out, RS232
– Dimensions (HxWxD): 21x210x80mm
– Wireless remote requires 1x CR2025 battery

Contents

Switch, AC adaptor, IR remote, terminal block, mounting kit and user guide
