500V Multifunction Electrical Installation Tester-

Product Overview

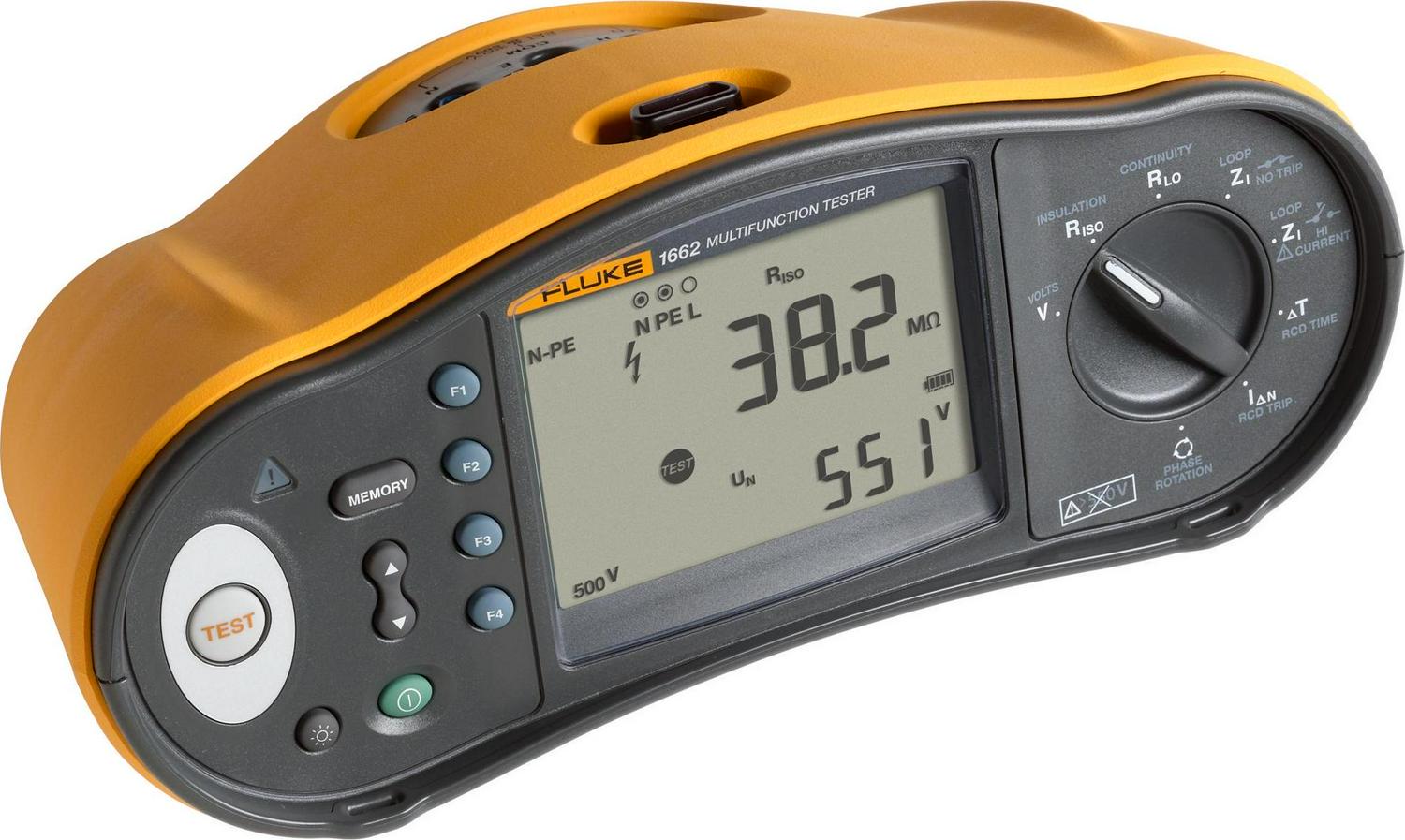

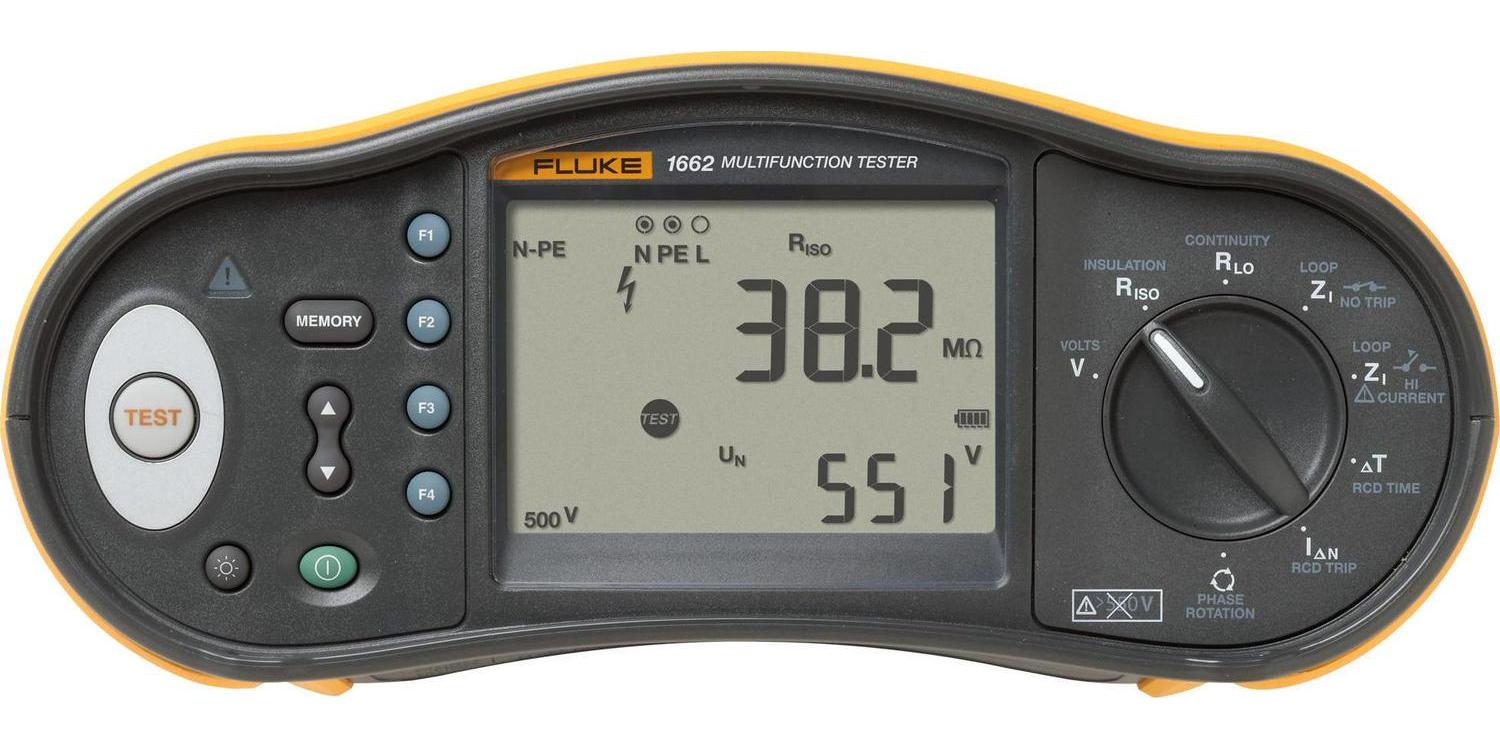

The FLUKE 1662 EU is a multifunction installation tester with EU plug type. It is reliable, simple to operate multifunction installation EU tester which quickly and efficiently tests all local regulations, protecting appliances that may be inadvertently connected to the system under test and making it easy to share test results over Smartphone. It features AC voltage measurement, frequency measurement, wiring polarity checker, detects broken N wires, insulation resistance measurement, continuity testing, measure motor windings with continuity test, loop & line resistance, prospective earth fault current (PEFC/IK), prospective short-circuit current (PSC/IK), RCD switching time, RCD tripping level (ramp test), measures trip time & current for RCD type A & AC in one test, RCD variable current, automatic RCD test sequence and phase sequence indicator.

– Measurement function
– Voltage & frequency
– Wiring polarity checker, detects broken N wires
– Insulation resistance
– Continuity & resistance
– Measure motor windings with continuity test
– Loop & line resistance
– Prospective earth fault current (PEFC/IK)
– Prospective short-circuit current (PSC/IK)
– RCD switching time

Applications

Test & Measurement

Contents

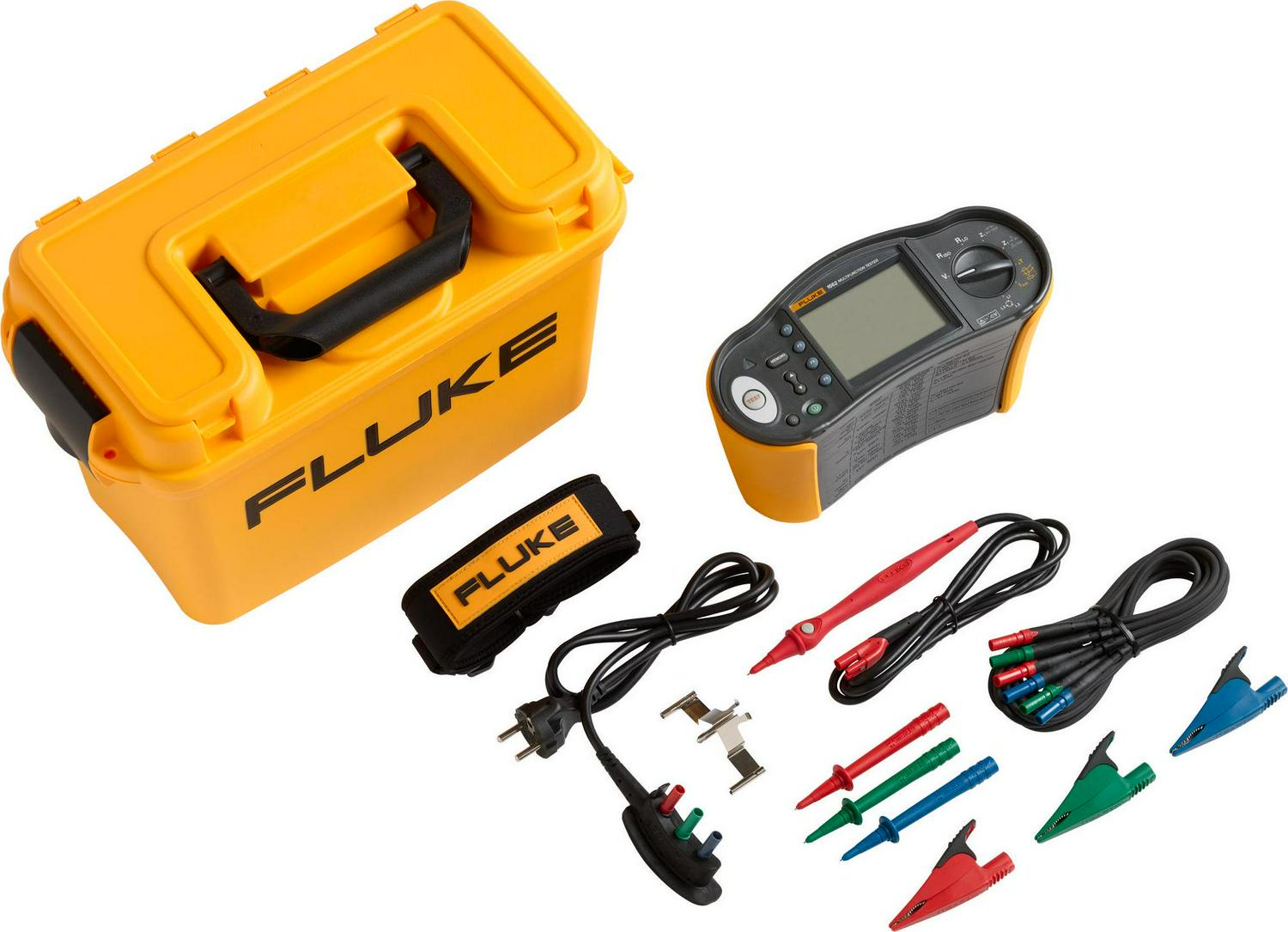

6x AA (IEC LR6) cell batteries, C1600 hard carrying case, Zero adaptor, Heavy duty mains cord, STD standard test lead set, C1600 hard carrying case, Padded carrying and waist strap, Quick reference guide, TP165X remote control probe and lead, User’s manual on CD-ROM
