868MHz DIL Trasmitter and Receiver Radio Telemetry Module-

Product Overview

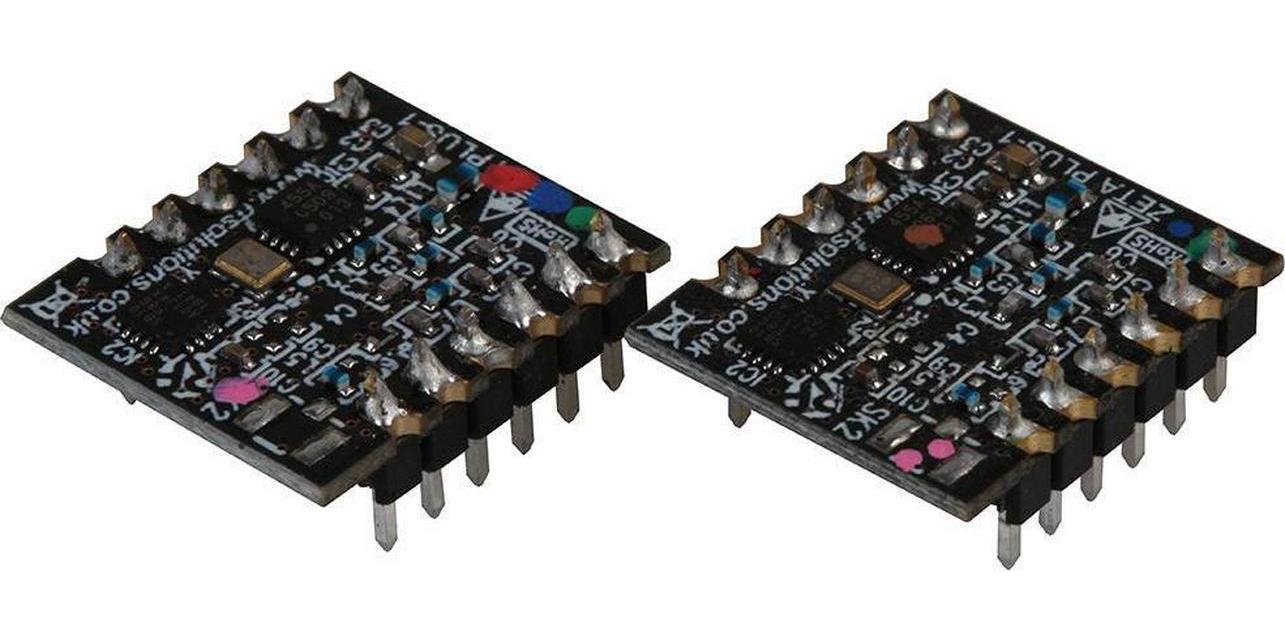

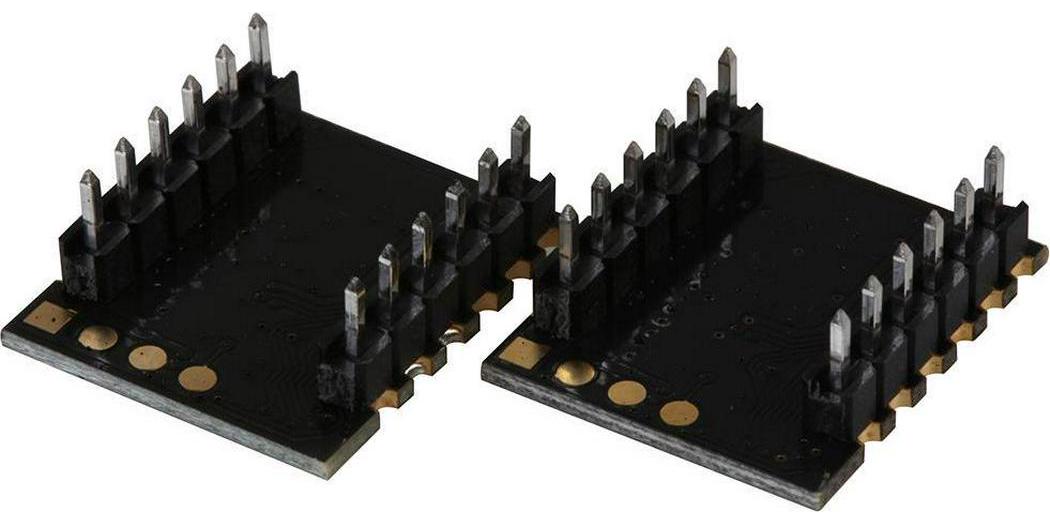

The ZPTPAIR-8D4 from RF Solutions is a DIL tramsmitter and receiver kit, the module has 4 Digital inputs at 868MHz. The ZPTPAIR-8D4 provide an easy Plug and Play Remote Control Telemetry system for any embedded application. The transmitters come as an easily integrated four input device, these modules are compatible with many RF Solutions receivers which can be combined together to offer many different remote control options. Offering a versatile secure radio Telemetry system for many applications.

– Suitable for I/O Telemetry devices, remote switching and remote traffic lights
– Embedded Remote Control
– 4 input / output Channels
– Range up to 2KM
– Serial Data output
– Minimal external components
– Secure data protocol
– Ultra low power 1.8 – 3.6V
– 2 Easy pairing options
– +15dBm Transmit power
– CE compliant
– Incorporates self test mode
