96-Channel Digital I/O USB Device, 32 Bit-

Product Overview

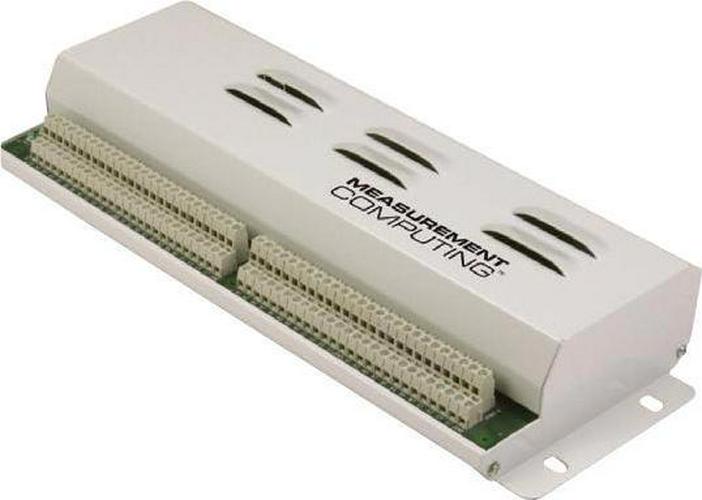

USB-DIO96H is a 96 channel digital I/O USB device. The USB-DIO96H is ideal for high-channel count digital I/O requirements. The device provides high current, logic-level, bidirectional digital I/O and counter operation, and is designed with a heavy-duty chassis for rugged applications. Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW , MATLAB, Linux, and Python .

– 5.5V input voltage, 64 mA sink and 24mA source
– One 32-bit event counter
– USB interface
– Externally powered with included 5 VDC power supply
– Screw terminals for signal I/O connections
– 50-pin mass termination connectors for OEM applications
– Rugged metal enclosure that can mount on a DIN rail or on a bench

Contents

USB-DIO96H, USB cable, Power Supply, 5 VDC Output, AC Input Cord USA style, Printed insert: DAQami Quick Start, MCC packaging assembly/foam, etc.

Footnotes
In addition, we have calibration services for this product (Europe only). Visit our calibration service page to see details of what options are available.
