Analog Dev System, Lab Kit, ASLK Pro-

Product Overview

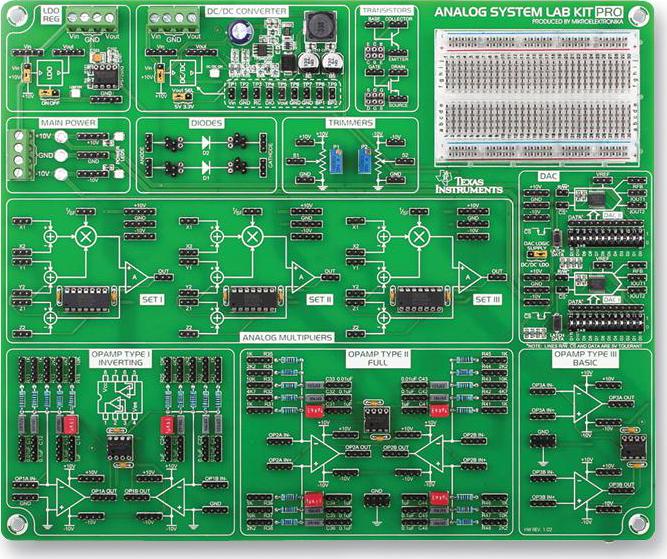

The MIKROE-957 is an analogue system lab kit (ASLK PRO). It is designed for undergraduate engineering students to perform analogue lab experiments. The main idea behind ASLK PRO is to provide a cost efficient platform or test bed for students to realize almost any analogue system using general purpose ICs such as OP-Amps and analogue multipliers. ASLK PRO comes with three general purpose operational amplifiers (TL082) and three wide bandwidth precision analogue multipliers (MPY634) from Texas Instruments. It also includes two 12bit parallel input multiplying digital to analogue converters DAC7821, a wide input non-synchronous buck type DC/DC controller TPS40200 and a low dropout regulator TPS7250 from Texas Instruments. A portion of ASLK PRO is left for general purpose prototyping which can be used for carrying out mini projects.

– Provision to connect ±10V DC power supply
– Compatible with TINA or Pspice for simulation, FilterPro software for designing analogue filters
– SwitcherPro software is compatible with ASLK PRO for power supply design

Applications

Hobby & Education, Embedded Design & Development

Contents

ASLK PRO board in antistatic bag, Wire jumpers, Transistors, Diodes, User manual, Schematic, Graph paper book.
