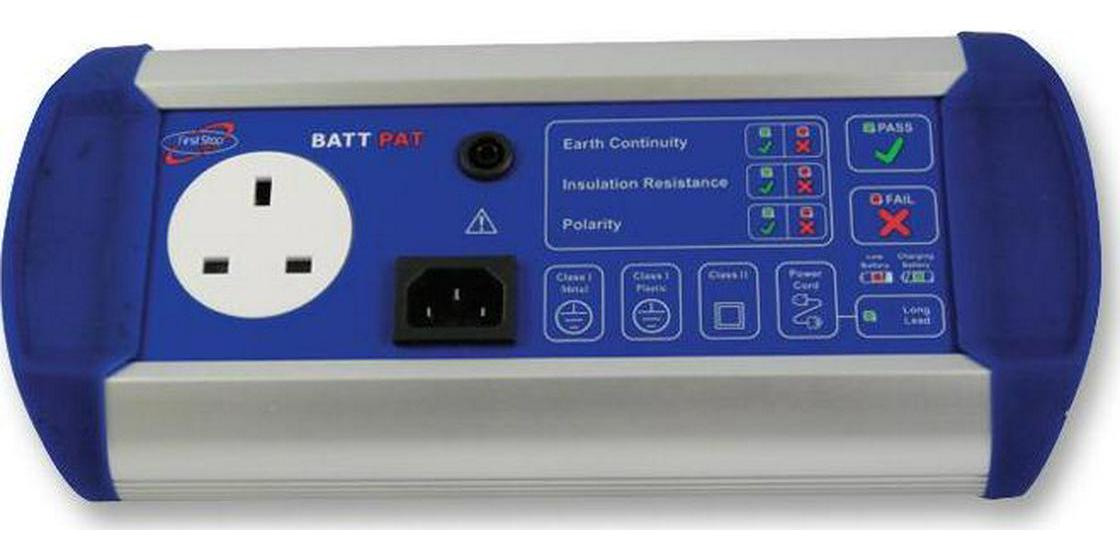

Battery Powered PAT Tester-

Product Overview

The Batt-PAT is ideal for in-house testing of electrical appliances in offices, hotels, schools, nursing homes, factories and construction sites. The comprehensive manual, test result labels and sample forms mean the user can be using it soon after unpacking.

– Very easy to use, with clearly marked buttons for different appliances
– PASS/FAIL result clearly shown
– Class I Metal, Class I Plastic, Class II and power cord tests
– Low current earth continuity test for safe testing of IT equipment
– Insulation resistance test voltage compatible with surge protected mains extension leads
– Long lead’ feature for leads in excess of 20m
– Powered by rechargeable battery (9V NiMH 280mAh)
– 1 hour fast charger included
– Hundreds of tests between charges
– Earth Continuity Test:
– Current: 150mA
– Open circuit voltage: 9V
– Tolerance: 5% + 20m
– Fail threshold: 250m
– Insulation Test:
– Test voltage: 350V
– Short circuit current: 3mA
– Tolerance: 5% + 0.1
– Fail threshold: 2M (Class I); 4M (Class II)
– Polarity Test:
– Test voltage: 5V
– Short circuit current: 0.5mA
– Working load: 30k
– Dimensions (HxWxD): 45x285x130mm
– Weight: 1.1kg

Contents

Contents: Tester, instruction manual, test result labels (100 “Tested”, 5 “Failed” and 50 “Fuse” labels) and sample forms (ie. “Equipment Register” and “Equipment Test Record” forms)
