Cable Length Tester with TDR-

Product Overview

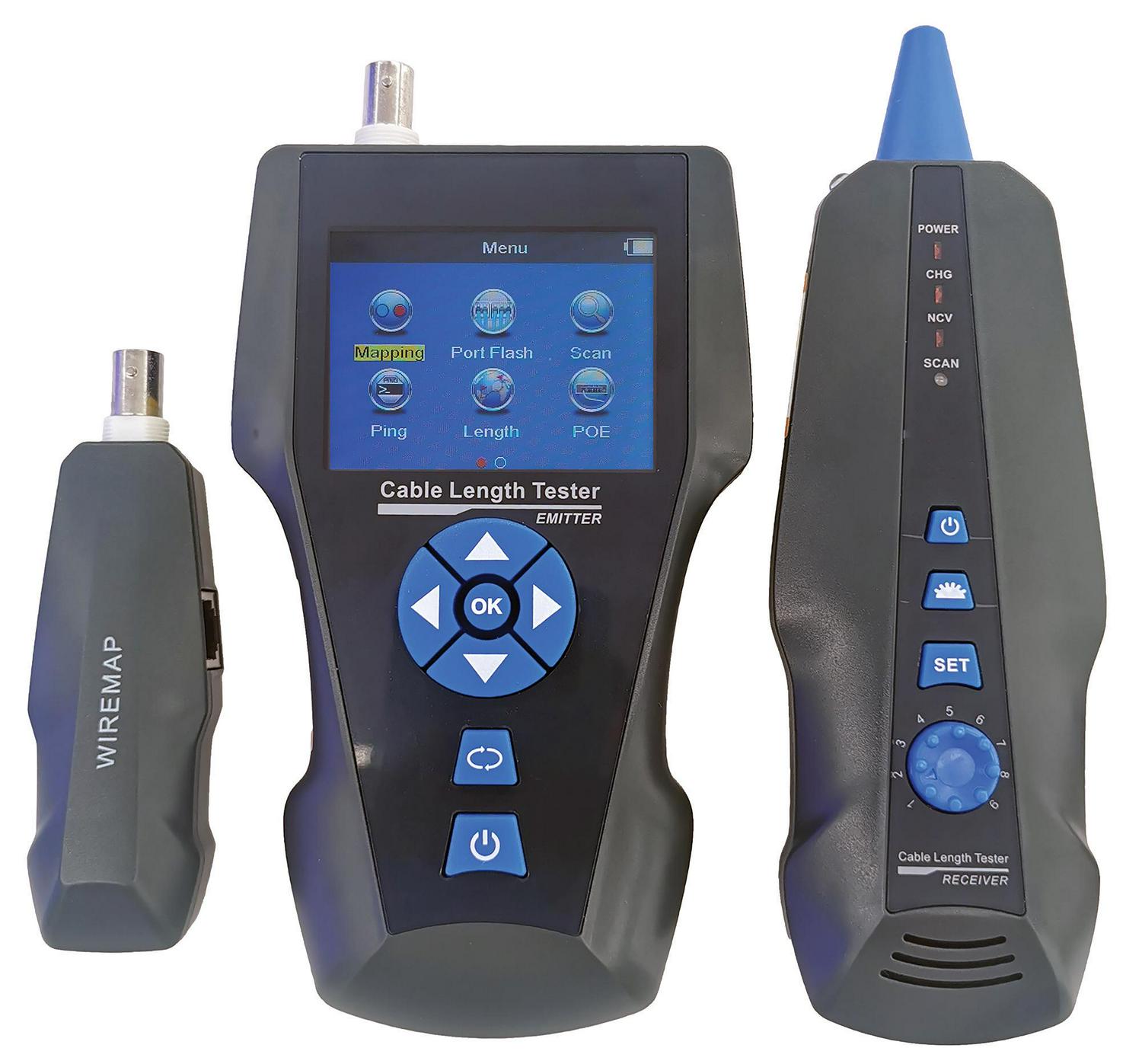

Cable length tester that measures and displays the distance to fault accurately using Time Domain Reflectometry (TDR) technology.

– Supports Cat5e, Cat6, Cat6a, Cat7, power cable (4+2 LAN cable, 8+2 LAN cable), telephone cable, coaxial cable tracking and testing
– Identify which pins are providing power and detect how much voltage
– Test network performance, data packet, min. and max. time
– Tone trace cable with complete AC interference rejection, three modes: high frequency/PoE switch/low frequency
– Hub blink for locating network ports by the flashing port light on a server/switch/hub/router port
– Tests cable lengths, distance to fault (DTF), graphical wire mapping, opens, and shorts etc.
– TF card included to export data to the computer
– Voltage detector is included in the receiver (90-1,000V)
– Max. test distance: 2km (wiremap), 1km (tracing)
