Data Acquisition System-

Product Overview

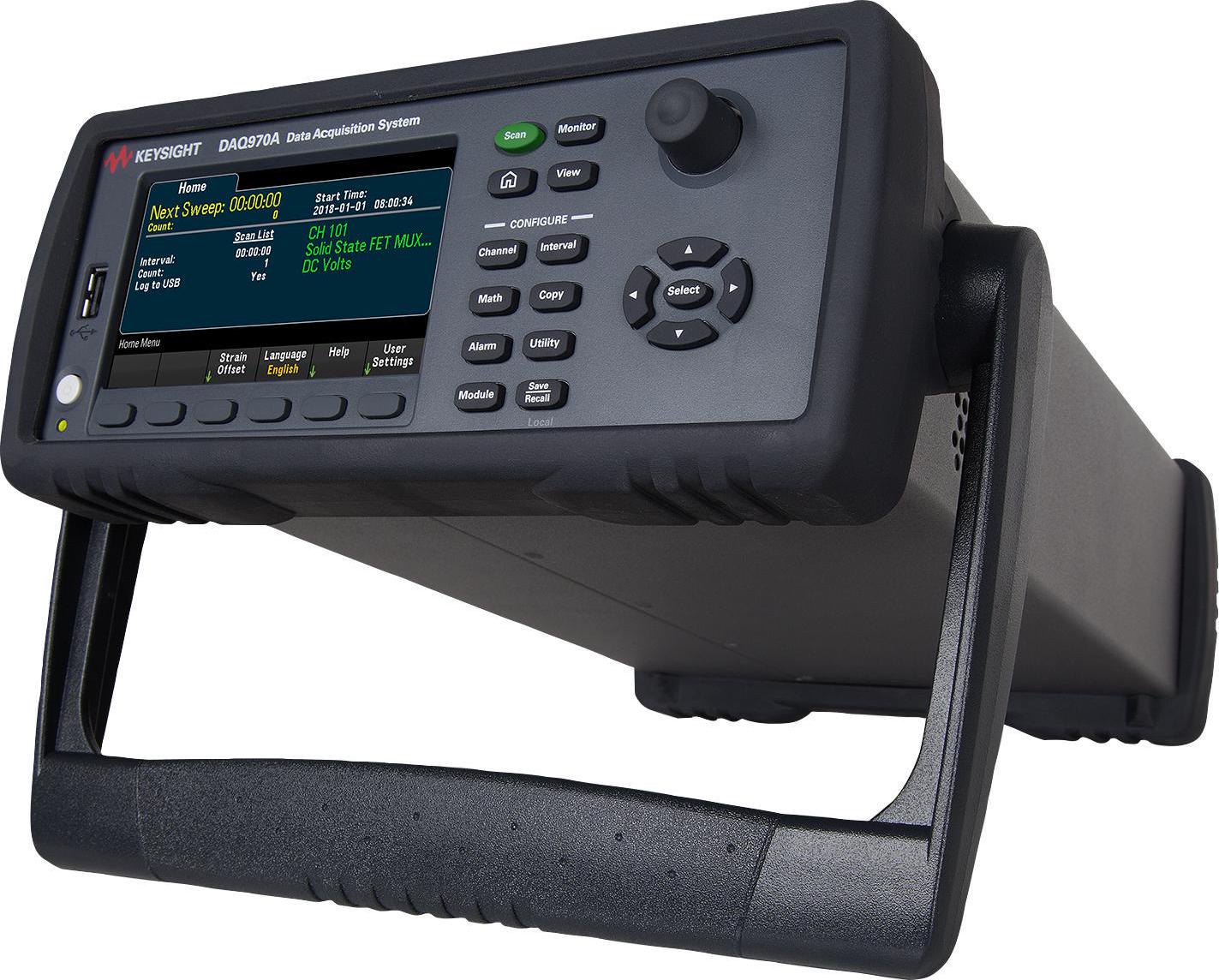

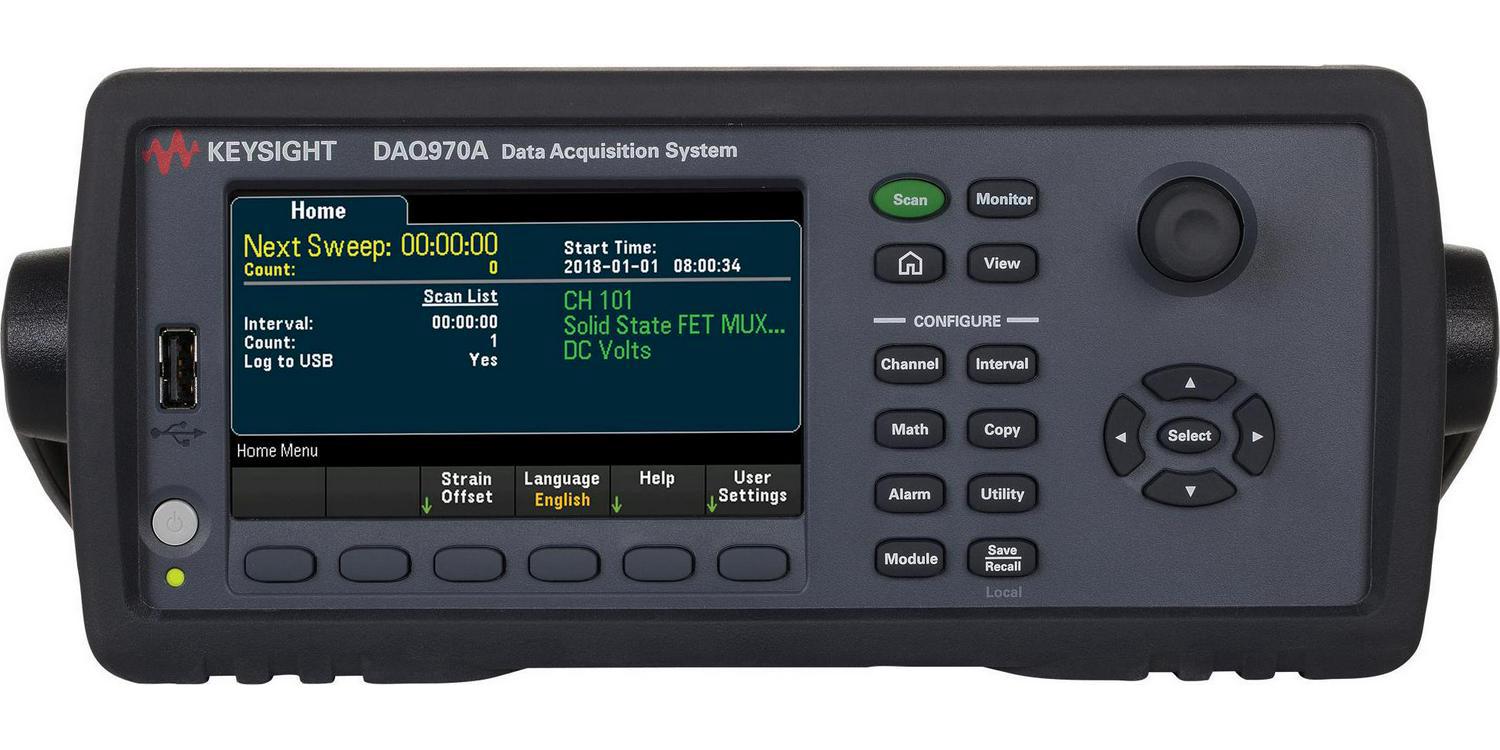

DAQ970A is a data acquisition system mainframe with built-in USB and LAN interfaces. Data acquisition system with built-in 6 ½ digit DMM and autocalibration feature that compensates for internal drifts caused by time and temperature change. This low-cost, compact data acquisition package offers proven Keysight measurement performance, universal inputs with built-in signal conditioning, and modular flexibility. Whether you need to measure temperature, AC/DC volts, resistance, frequency, or current, the DAQ970A can handle it. The internal auto-ranging DMM directly measures 12 different functions, eliminating the need for expensive external signal conditioning. It features 100k readings of non-volatile memory holds data when power is removed, Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs. The unique design allows complete per channel reconfigurability for maximum flexibility and quick, easy set-up. It s like having an independent, high-performance DMM behind each channel.

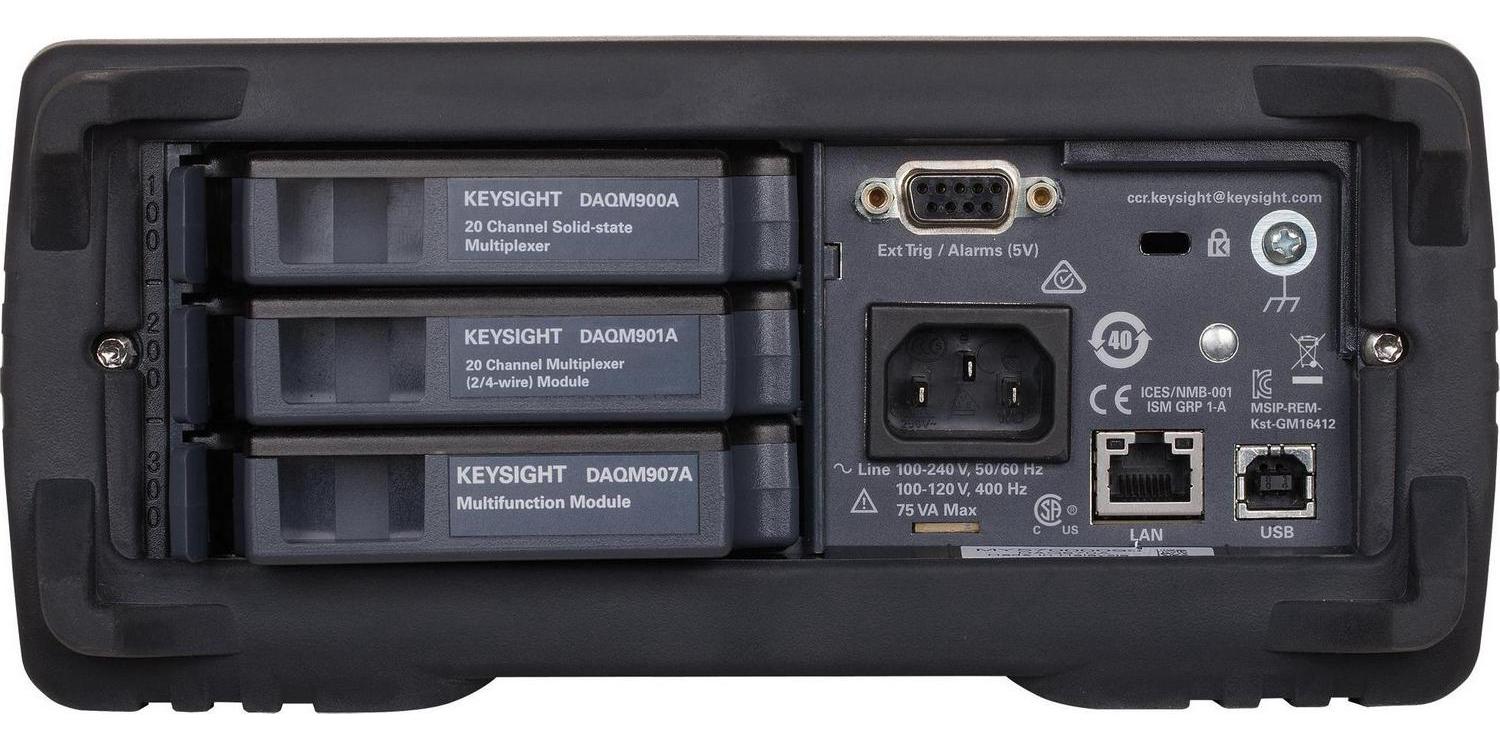

– 3-slot mainframes, 24-bit sampling rate of 800KSa/s with a new DAQM909A 4 channel digitizer module
– Up to 450 channel/s scan rate, up to 120 channels/system
– Up to one million points scanning memory
– Measures and converts 14 different input signals

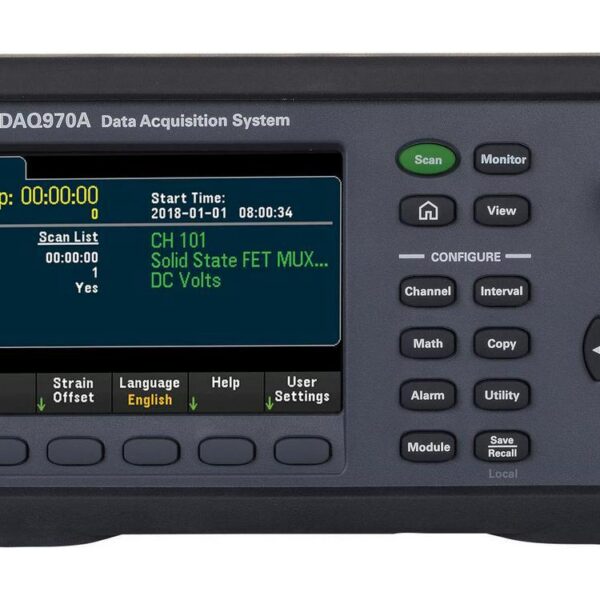

– Large 4.3″ colour display for ease of setup and viewing data
– LAN and USB for easy connectivity to PC
– USB flash drive support to copy/log data in standalone applications

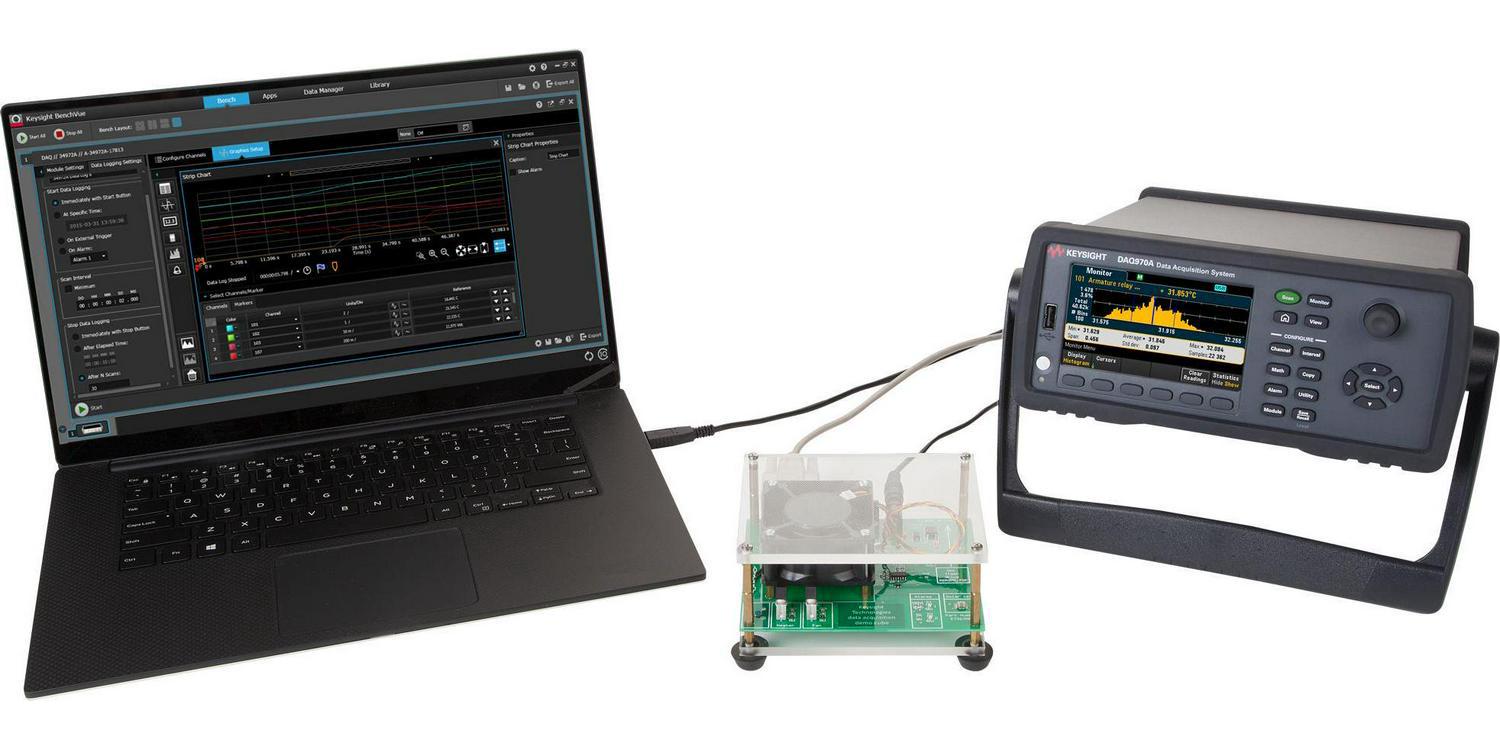

– BenchVue DAQ with enhanced time/frequency domain measurement included
– Basic of 0.003% DCV accuracy

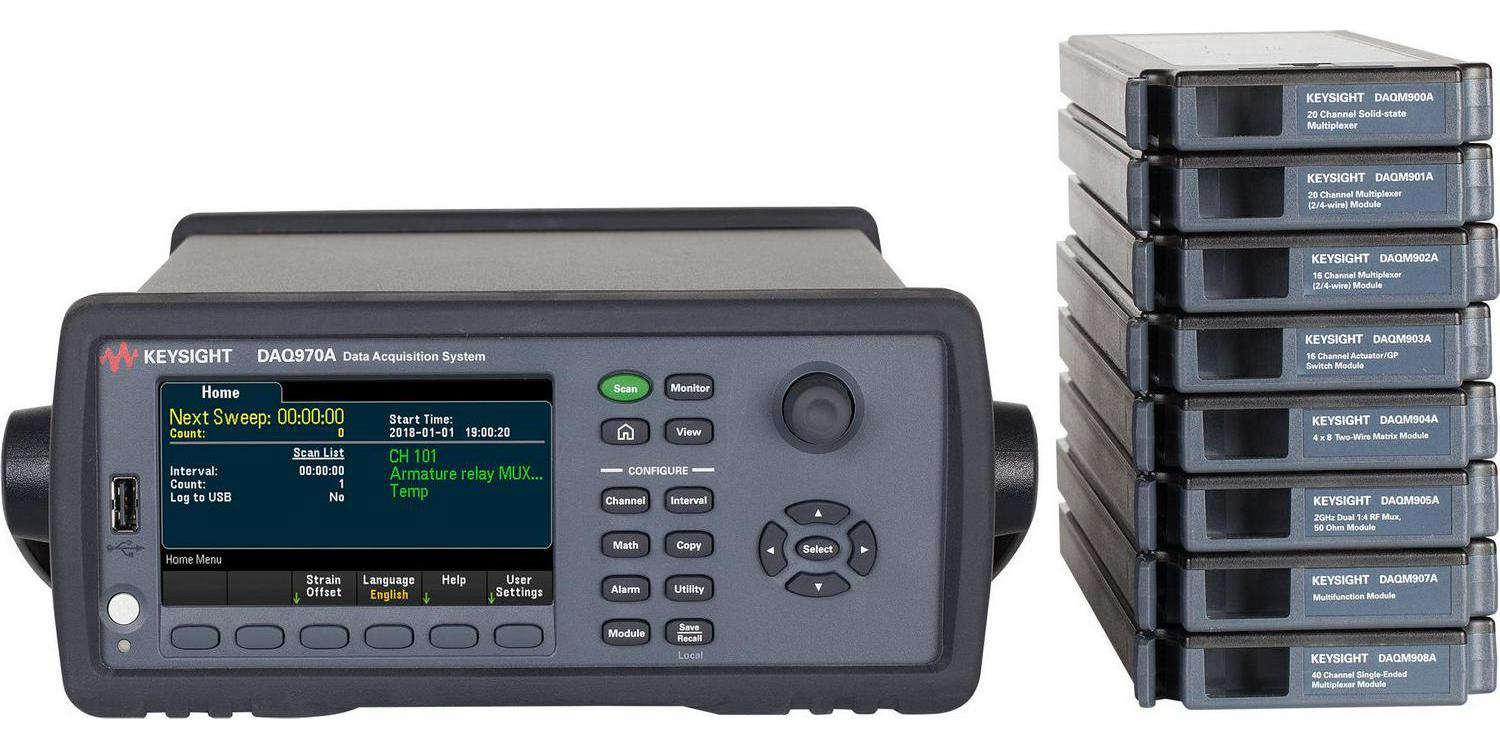

– 10 switch, RF and control plug-in modules, including a new 4-channel simultaneous sampling digitizer

Contents

Data acquisition system, Power cord (for country of destination), Certificate of calibration (optional), Supplemental documentation packet, USB 2.0 cable, One J-type thermocouple, Flat blade screwdriver, Keysight IO Libraries Suite Software CD.
