EV Charging Station Test Adaptor Kit, with Type 1 and 2 Plugs and Multifunction Tester, IP54-

Product Overview

FEV300 test adapter kit is designed to test function and safety of charging stations mode 3 for AC charging. The adapter imitates an electric vehicle and opens up a charging cycle (activating voltage/current output), allowing you to conduct tests in combination with appropriate test instruments like an installation tester (for example the Fluke 1664 FC) and/or an oscilloscope (for example the Fluke 120B Series Industrial ScopeMeter). With the FEV300 Adapter Kit, charging stations can be tested in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722.

– Suitable to vehicle charging stations with charging mode 3
– Fits to charging stations with EV socket-outlet type 2 and EV-connectors for type 2 and type 1
– PE pre-test, proximity pilot state cable simulation , control pilot state vehicle simulation
– Separate phase indication by 3 x LED lamps for easy check if voltage is present at charging output
– Measuring terminals L1, L2, L3, N, PE to connect test device to perform safety and functional tests
– IP 54 rating
– Error simulation for CP error state E and PE error state F
– Dimension is (H × W × D) 110 × 45 × 220mm length without connection cable and test cable
– Operating temperature range from -20°C to 40°C

Contents

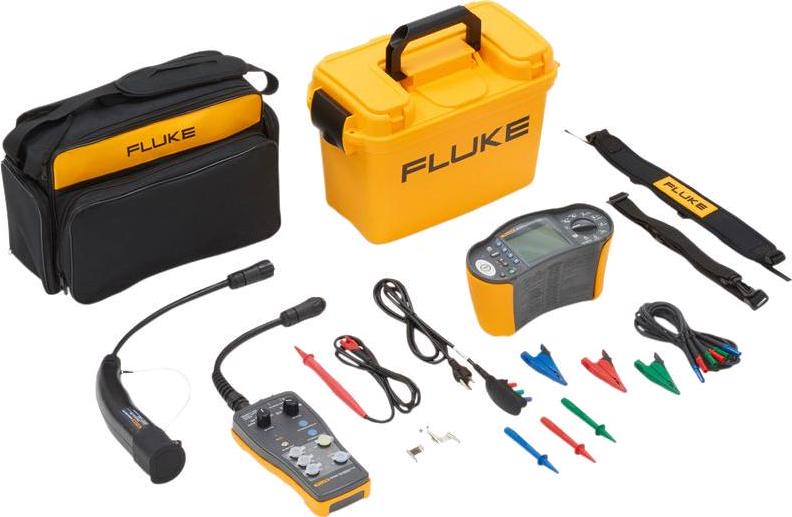

FEV300/BASIC test adapter, FEV300-CON-TY2 type 2 plug, 1664 FC multifunction tester, Carrying case.
