Extender V1-M USB MIDI DAW Controller-

Product Overview

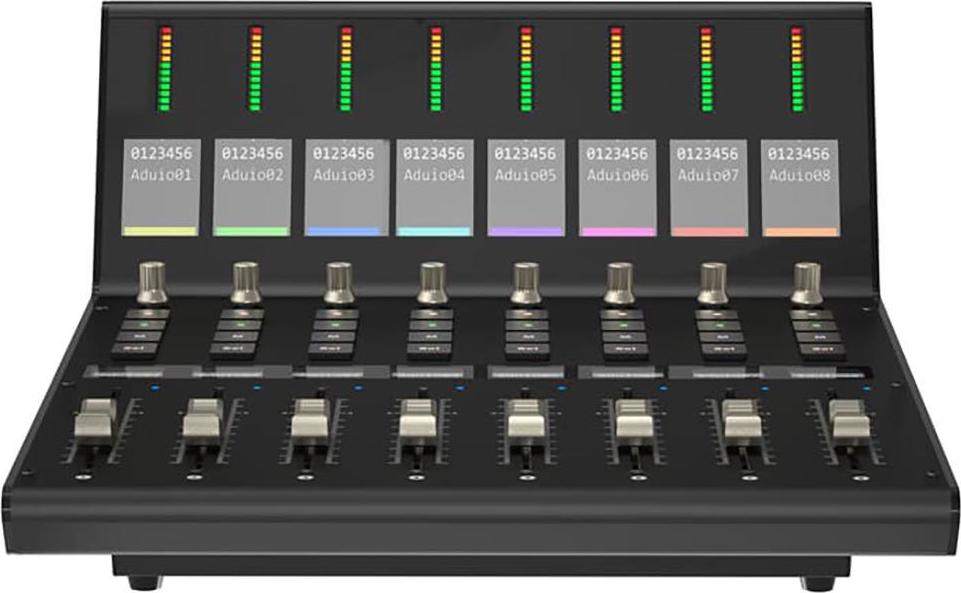

Expand your V1-M to 16, 32, or even 64 channels depending on your DAW with the V1-X DAW Control Extender. Each V1-X houses eight touch-sensitive motorized channel faders with 12-bit resolution, eight dual function encoder knobs, mute, solo, select and record buttons, plus an TFT display showing channel names and different control parameters for each channel. It also includes an LED level meter bridge in a robust metalcasing and a second CD display for use with compatible DAWs.

– Functions as an extender for the iCON Pro Audio V1-M MIDI DAW controller
– 8x touch-sensitive motorized faders with 12-bit resolution
– Extremely hardwearing, durable and versatile
– On-board TFT display showing channel name, control values, channel colors etc. (DAW dependent)
– Attractive, modern meter bridge featuring precise, clear and eye-catching LED meters
– Additional, lower 1.1 inch TFT display for each channel (some DAW s are equipped to display additional information)
– 8 smooth action dual-function encoder knobs (Rotate and Enter)
– Illuminated buttons for channel control including Mute, Solo and Record
– Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
– iMapTM software downloadable from product page on website USB C high-speed connectivity
– Firmware upgrade available via USB C connection and iMapTM software
– Superior build quality and robust metal casing with Kensington lock port
– Superb reliability with Cortex-M7 @500 MHz ARM chip
– Connector to computer: USB connector (standard type)
– Power supply: 12V/2.5A DC
– Dimensions: 309mm x 384.5mm x 178mm
– Weight: 3.615kg
