Flow Switch, Brass, AC-

Product Overview

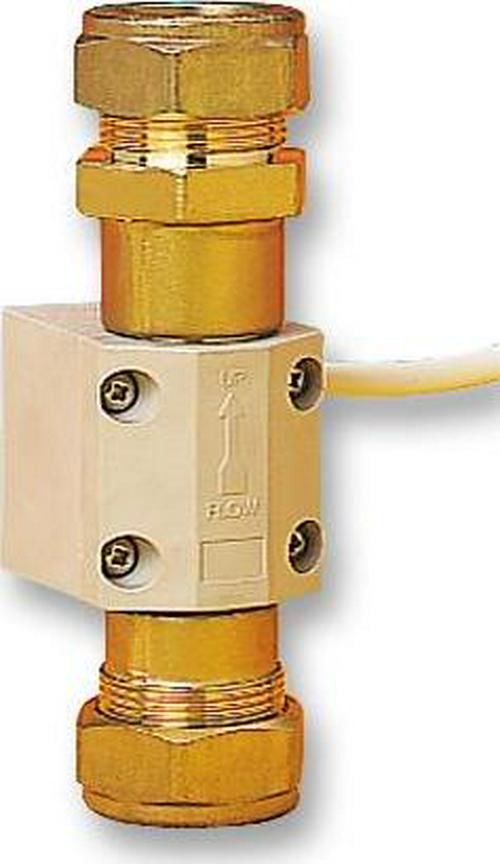

FS-05 is a FS series rugged brass liquid flow sensor with 22mm compression fitting for easy installation. Typical applications include mains water control, power shower, central heating systems, circulation pump protection and cooling systems.

– Operates from small head of water
– Easy installation and vertical mounting
– Suitable for hot and cold potable water
– Meets UL 94-HB flammability rating, Reed Switch Reliability (UL File E153493) and IP65 rated
– Brass housing, noryl shuttle, triac contact material
– Operating temperature range from -30°C to 100°C
– Maximum pressure of 10bar at 20
– SPST, 250VAC max switching voltage, 3A max switching current
– N/O, close with flow operate mode and ‘A’ contact form
– White outer Blue/Brown inner 0.5MM² BS6500 PVC stripped cable, 1 x 1M double insulated cable length
