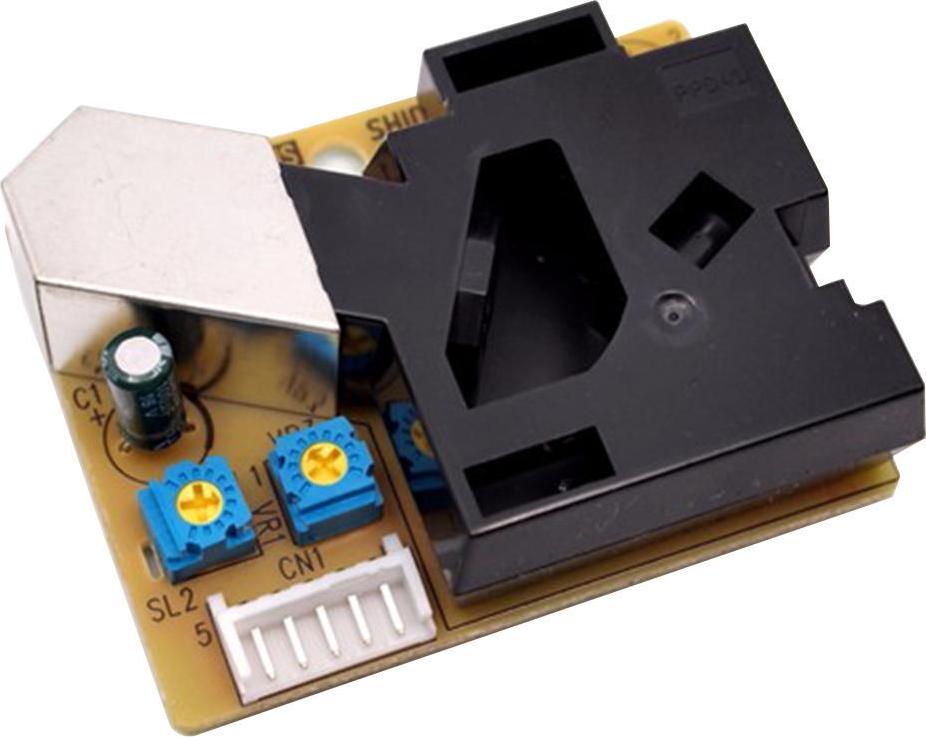

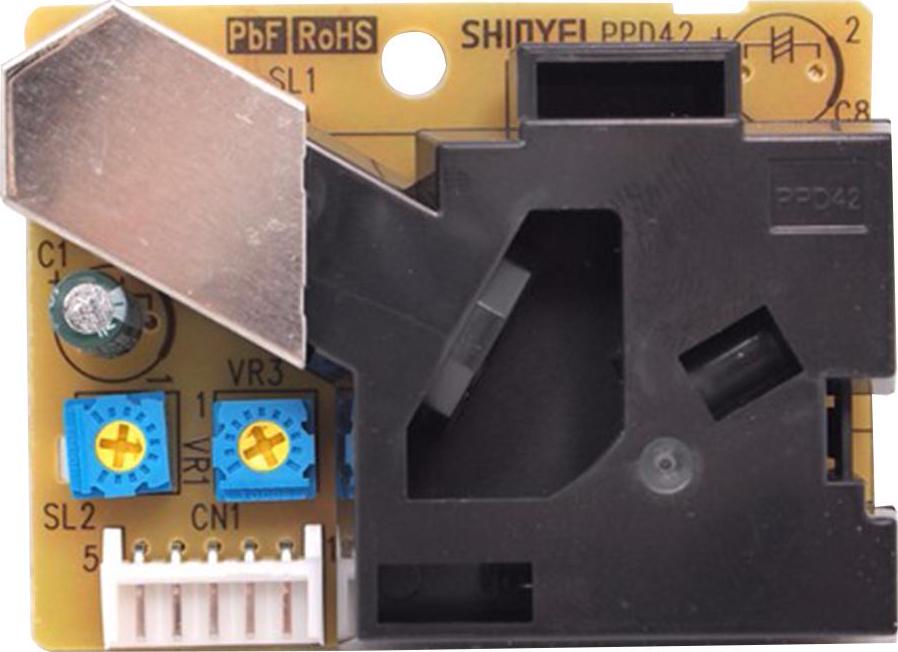

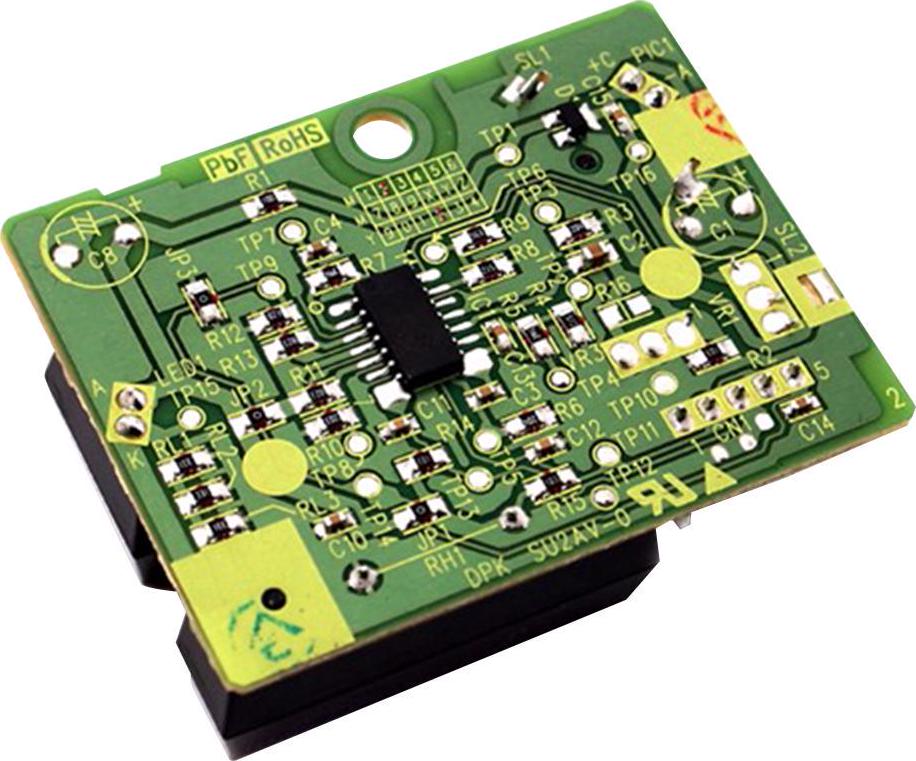

Grove Dust Sensor-

Product Overview

Grove – dust sensor(PPD42NS) provide reliable data for air purifier system. This Dust Sensor gives a good indication of the air quality in an environment by measuring the dust concentration. The Particulate Matter level (PM level) in the air is measured by counting the Low Pulse Occupancy time (LPO time) in a given time unit. LPO time is proportional to PM concentration. This sensor can provide reliable data for air purifier systems; it is responsive to PM of diameter 1 m.

– Grove compatible interface(extra wire with connector)
– Supply voltage range: 5V
– Minimum detect particle: 1um
– PWM output
– Dimension is 59(W) x 45(H) x 22(D) [mm]

Contents

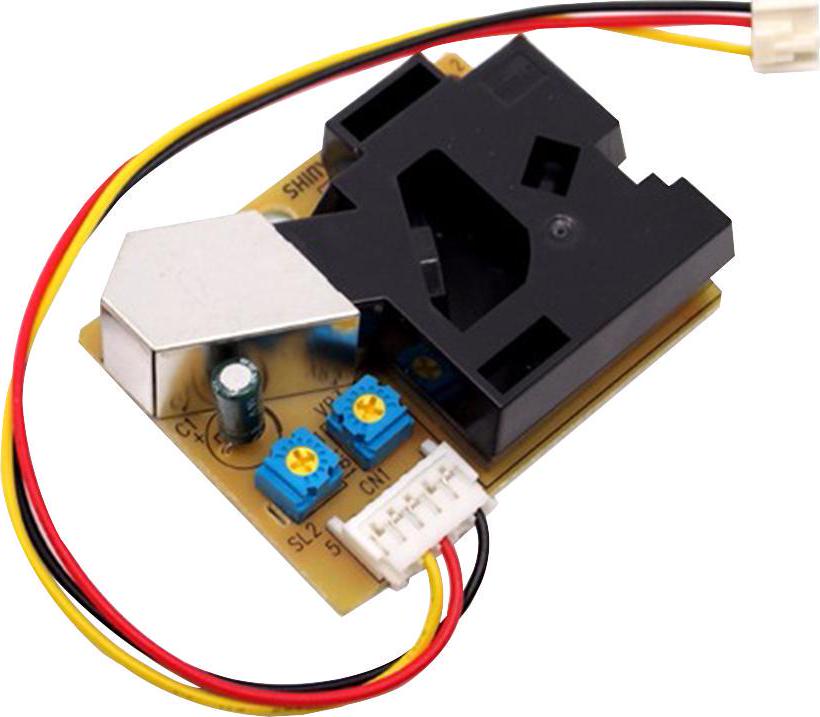

1 x grove – dust sensor, 1 x grove cable.
