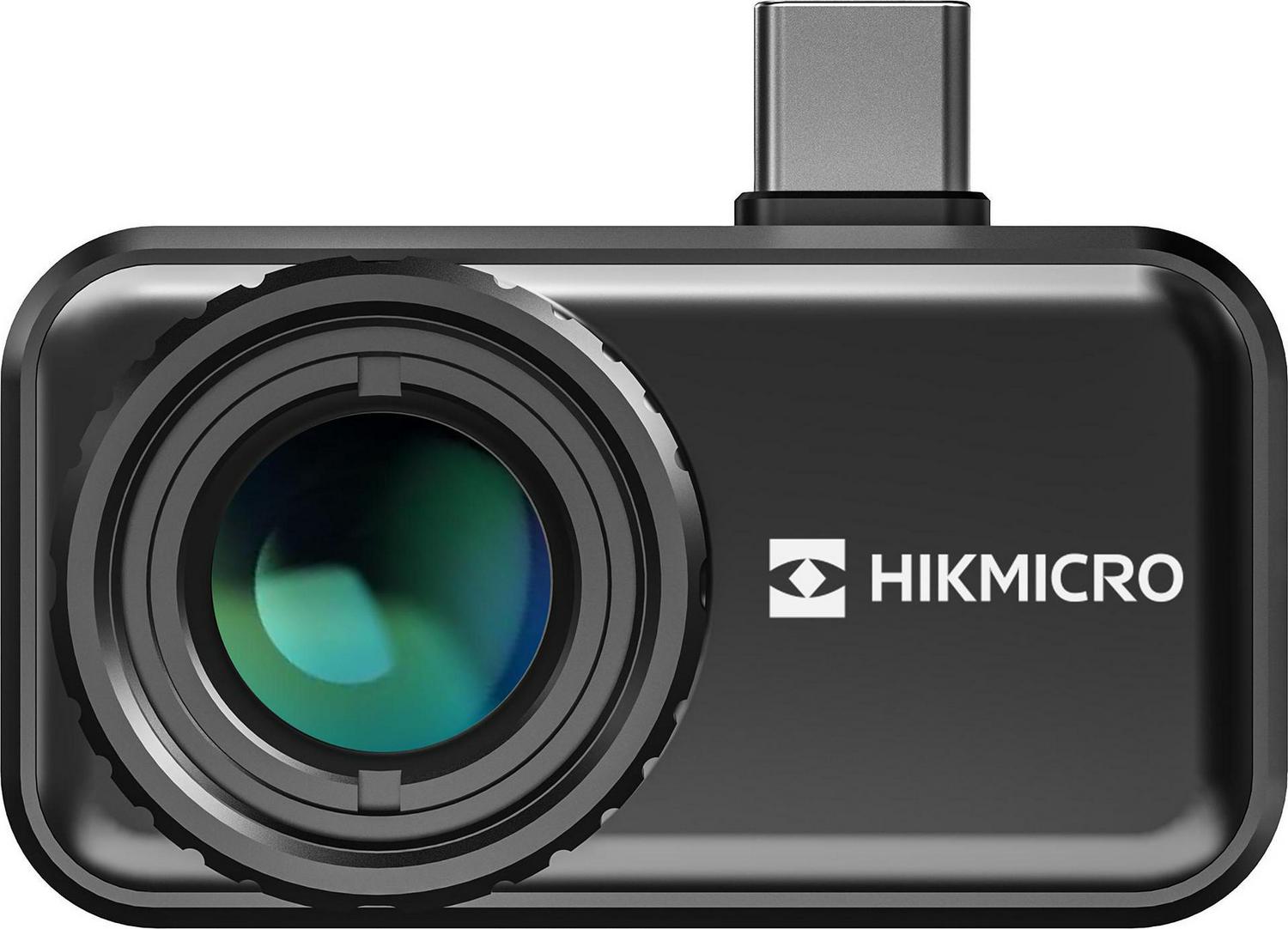

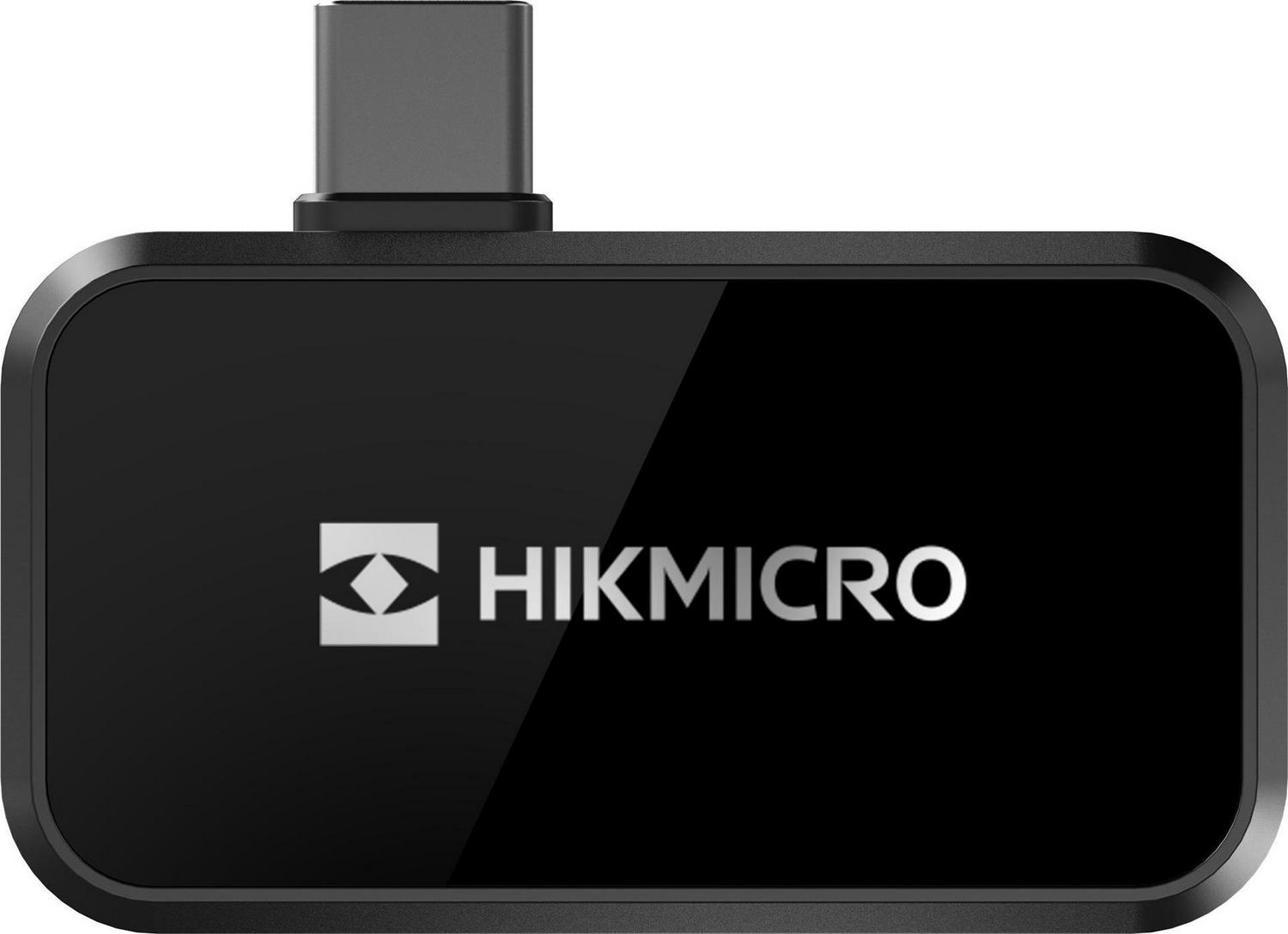

Mini 3 Thermal Imaging Camera for Smartphones, -20 to +100 Deg. C-

Product Overview

Smartphone module designed to inspect electrical equipment, troubleshooting HVAC problems. Equipped with functional thermal app for smartphone, the module enables thermal imaging on your phone or tablet.

– Highly sensitive (NETD 30mK) VOx detector with resolution of up to 384×288, along with optimised image enhancement algorithms provides clear thermal images
– 50Hz image refresh provides a smooth image and video while panning across scenes or viewing moving items (need 8GB RAM on device, or more to enable 50Hz)
– Accurately measures temperatures from -20°C (-4°F) to +650°C (+1,202°F), with a temperature accuracy up to ±2°C (±0.5°F)
– Full screen measurement: centre spot, hot spot, cold spot, three custom spots and three areas
– 15 different colour palettes to find invisible problems more easily
– Provides professional settings that allow you to get the best thermal imaging images and temperature readings of different surfaces
– Gives the operator audio and visual alerts to high temperatures
– Instant notification when the temperature exceeds the preset alarm level
– At just 48x26x27mm and weighing only 45g, it’ll fit in your pocket, tool bag, or anywhere convenient for quick and easy access
– Instantly attaches to your Android smartphone or tablet and is ready to go in seconds
– Battery free, so you’ll never need to charge it up or find a charger cable
– Powered by your phone, designed to run on very little power to maximise your mobile device run time
– Features IP40-rated aluminium alloy housings, passes strict drop tests up to 1m, and comes with a three-year warranty
– Equipped with a manual focus lens for inspection at various distances from 300mm to infinity
– Viewing small objects like electronic components, or viewing more distant objects like electrical or mechanical equipment that require a safe distance
– 400mm extending cord connects between the device and camera allowing remote view, and inspection through narrow, confined openings, or difficult-to-reach places
– Also included is an 18mm extended connector to accommodate smartphones or tablets in a protective case
– Storage case is provided for storing your camera
– Compatible with the HIKMICRO Viewer for smartphones providing a user-friendly user interface and the link to operating the camera

Warnings
Note: For UK Business use only, Not suitable for sale to Republic of Ireland or EU.
