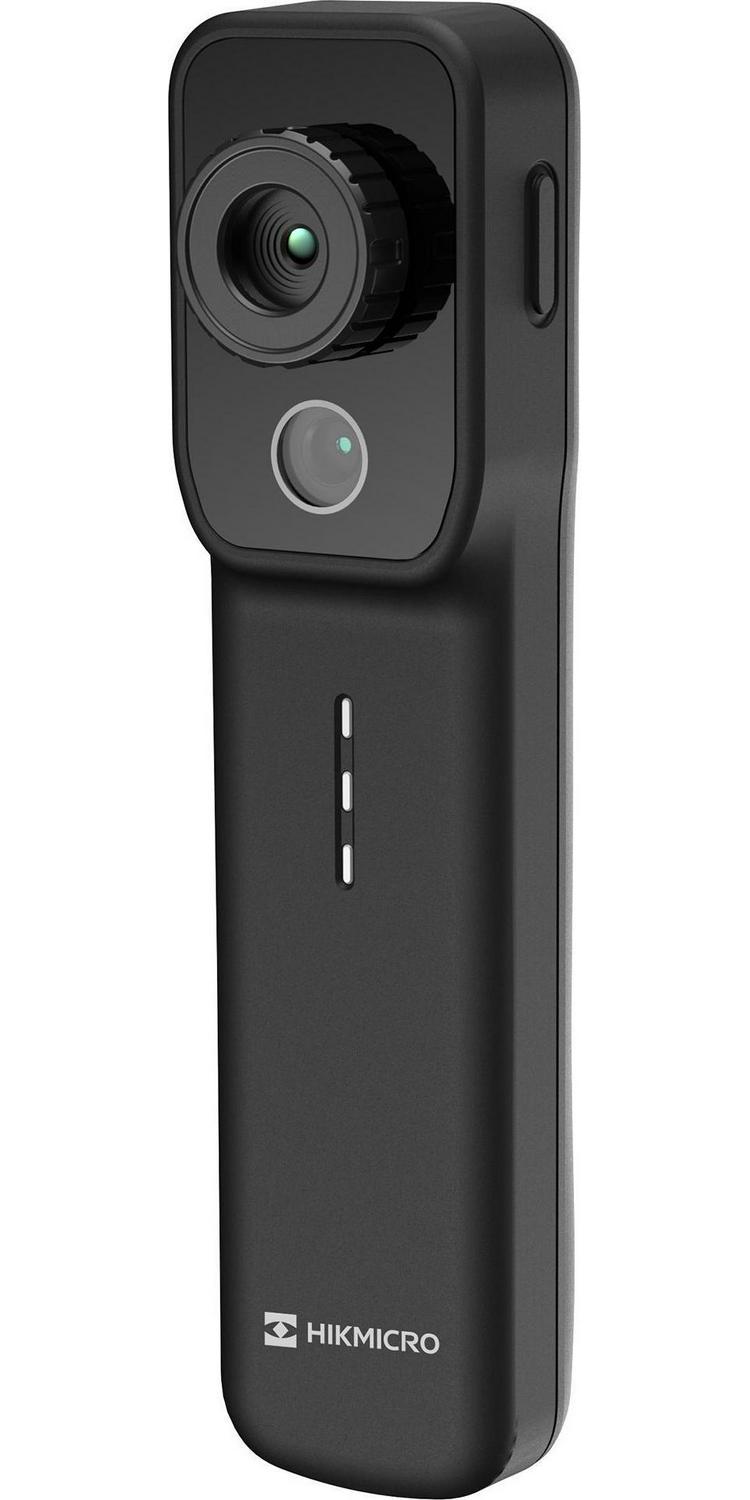

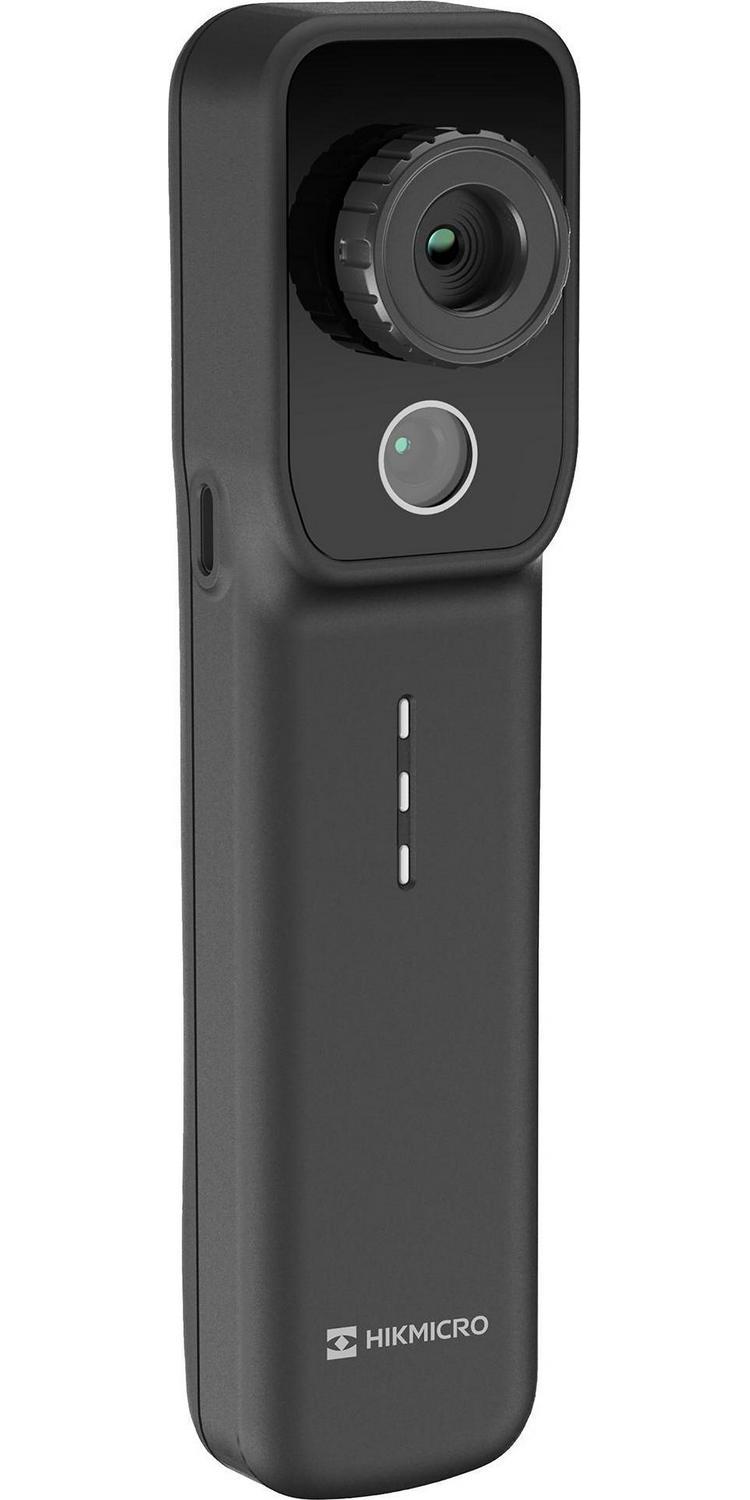

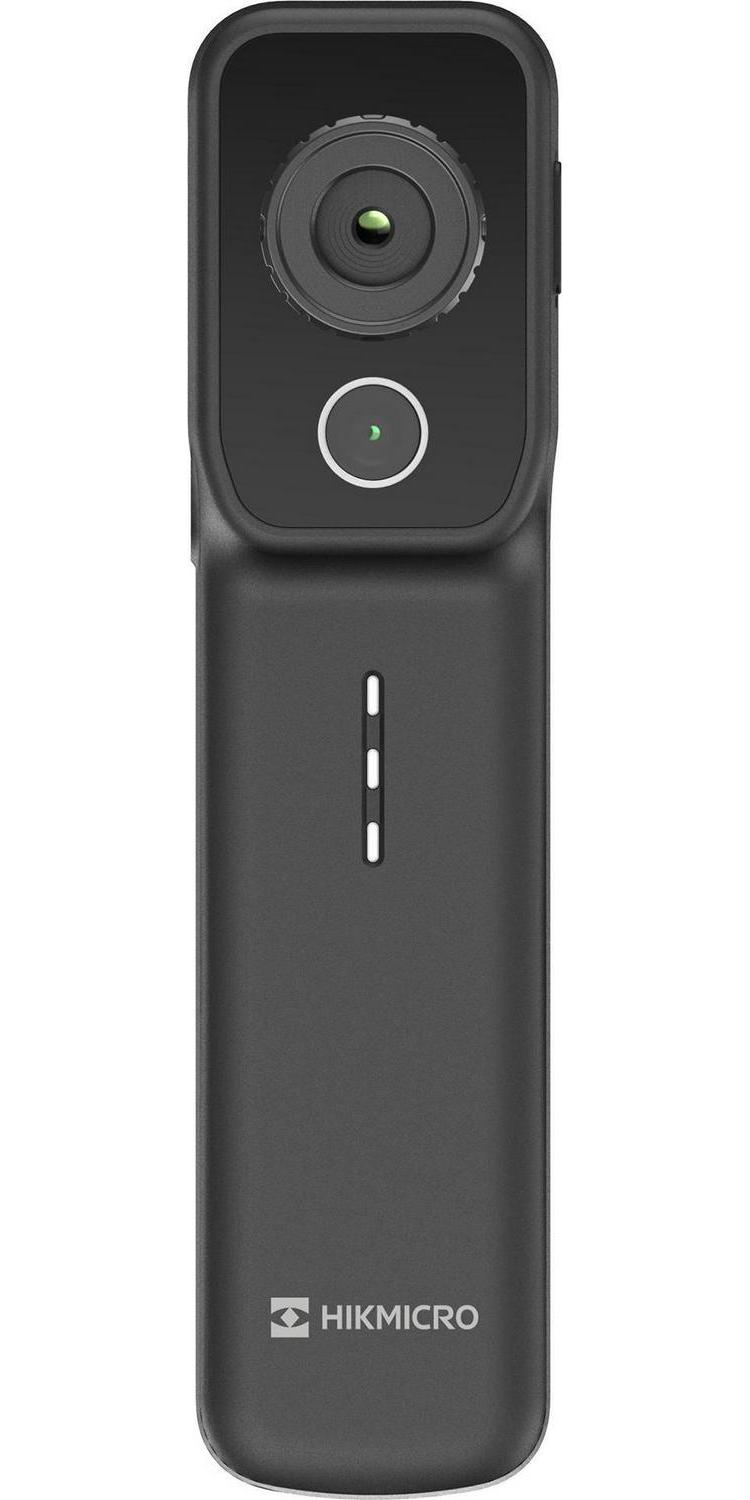

Mini X Thermal Imaging Camera for Smartphones, -20 to +550 Deg. C, IP54-

Product Overview

MiniX is a versatile thermal imaging tool that wirelessly connects to your smart device. The MiniX provides brackets for flexible installation options, such as clipping it onto your phone or tablet for easy one-handed operation, magnetic wall mounting, or tripod installation for long-term temperature monitoring. It features a dual-lens, a high-resolution VOx detector, and a 0.3MP optical camera for added detail. With SuperIR and fusion features, you can capture crisp thermal images and quickly locate hidden problems with accurate temperature measurements. The wide temperature range of -20°C to +550°C makes it ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The MiniX has a 25Hz frame rate for fast inspections and a WiFi function for real-time image sharing. It’s a powerful thermography tool that fits in your pocket, ready whenever you need it.

– The high-resolution IR and visual cameras uncover hidden details with five image modes and eight colour palettes
– Highly sensitive (NETD 40mK) VOx detector with resolution of up to 256×192, along with optimised image enhancement algorithms provides clear thermal images
– Crisp focus from near to far with a 3.5mm adjustable focal lens for precise details in PCB repair, inspections, and tracking
– Mini-X thermal camera simply scan a QR code for a quick wireless connection and enjoy stable image transmission

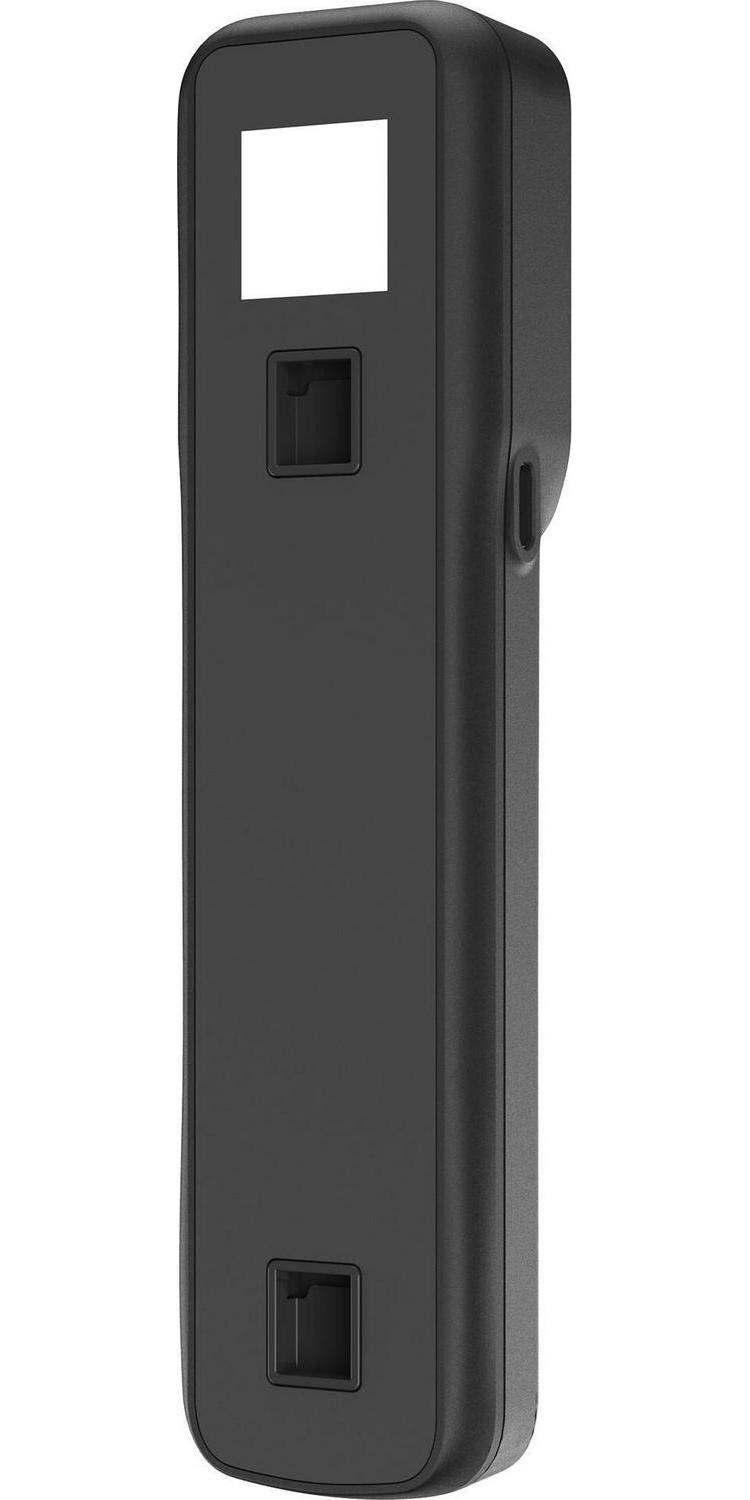

– Features a portable, ergonomic design with four mounting options: magnetic, wall, tripod, and clamp, offering flexibility for any task
– Enjoy up to 4 hours of continuous operation with the built-in Li-ion rechargeable battery
– HIKMICRO Analyser online preview feature is particularly valuable, allowing real-time access to thermal imaging data, which significantly enhances efficiency
– HIKMICRO Viewer app generates reports in the field, customise job site data, adjust measurement settings, add annotations, and share with customers or managers
– IP54 rated

Warnings
Note: For UK Business use only, Not suitable for sale to Republic of Ireland or EU.
