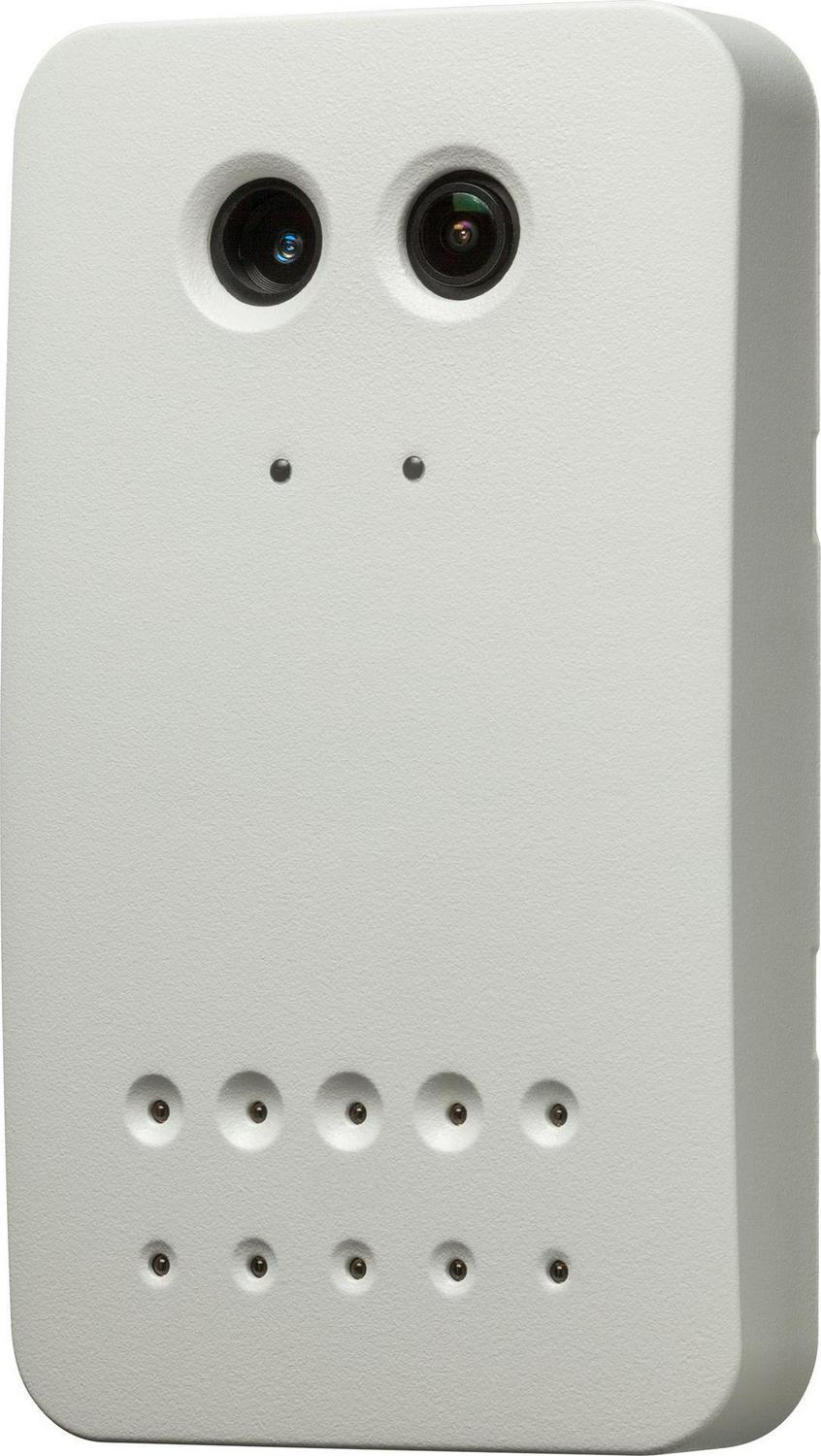

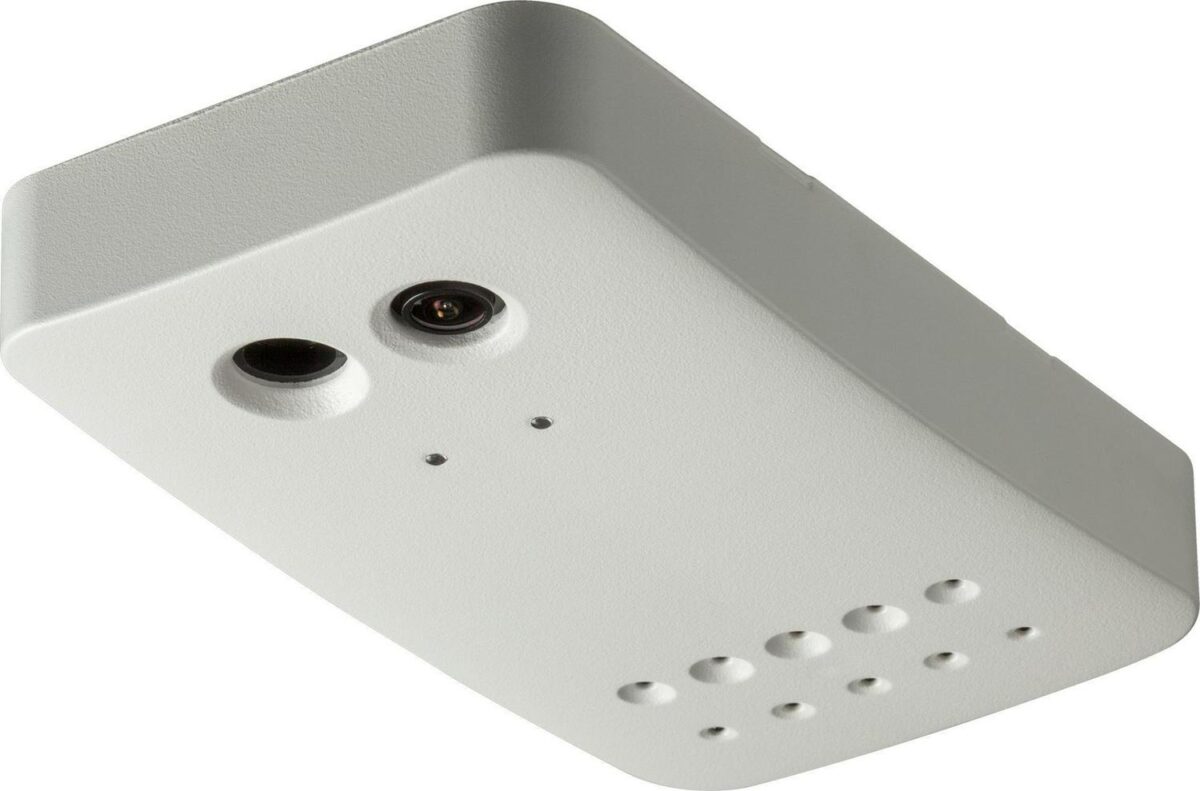

Monitoring System for Door Entrances – Main Entrance Sensor, White-

Product Overview

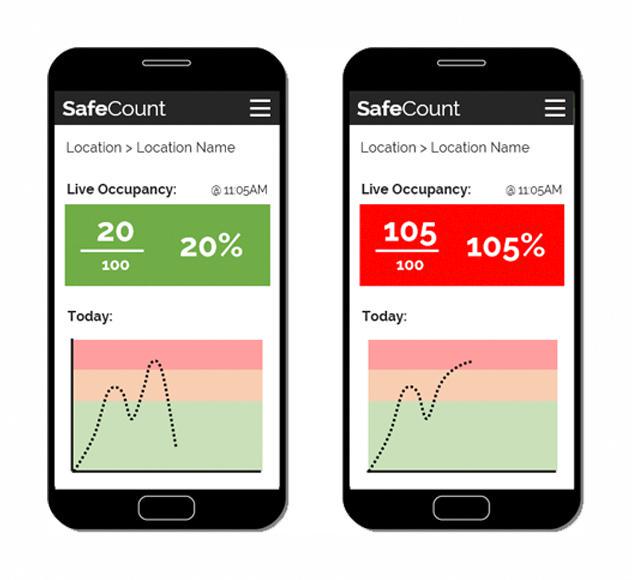

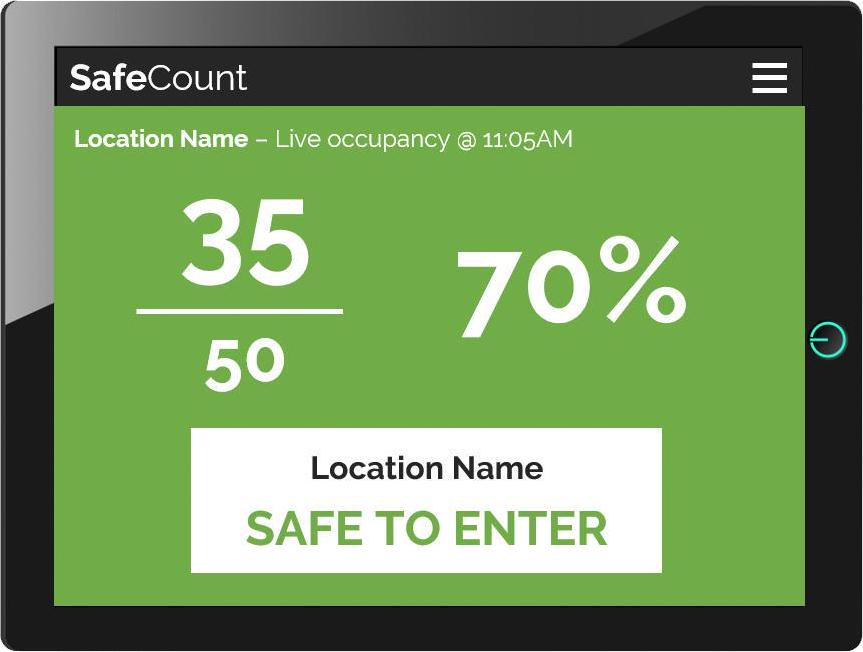

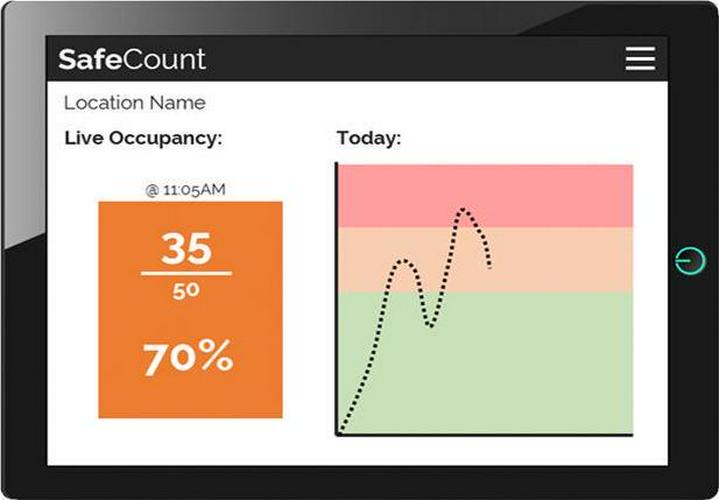

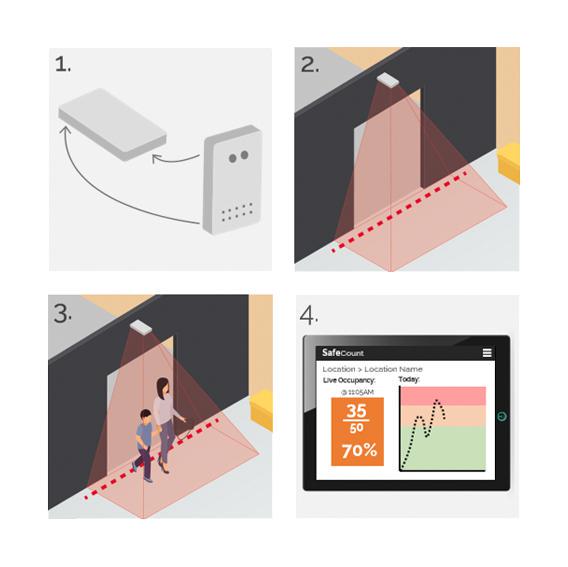

Designed for accuracy and fast implementation, a SafeCount system helps businesses comply with social distancing and occupancy guidelines by anonymously counting people as they enter and exit your building. Suitable for buildings of all sizes, even those with multiple entrances and exits, a SafeCount solution delivers live occupancy data with visual warnings and alerts when limits are approached or exceeded. SafeCount works independently of existing IT networks and is designed for simple setup and fast installation. SafeCount can be used monitor occupancy of entire buildings, individual rooms or anything inbetween. Example use cases are: retail stores and supermarkets. higher education, corporate workplaces, washrooms, restaurants, hospitality and leisure facilities. This model is to be used as the main entrance sensor.

– High accuracy people counter- SafeCount
– Device emits infrared light- time of Flight technology
– Employee detecting – staff filtering – detection speed 5m/s max.
– Dwell time measurement
– Functions in low-light or no-light conditions
– Connect up to 32 units seamlessly
– Remote configuration and validation
– Unaffected by reflective or shiny surfaces
– Accurately detects children and adults
– Edge IoT device
– Mounting Height 2.5m to 4.5m
– Sensor dimensions: 195x110x32mm
– Housing material: Cast aluminium
– Illumination requirement: N/A works in darkness
– Operating temperature: 0°C to 40°C
– Usage Indoor only
– Auto height setuph, height measurement & filtering – accuracy ±2cm
– Configuration interface: HTML 5 web config.
– Mobile device compatible
– Weight: 550g

Applications

Medical, Audio Visual, Business, Commercial, Installations, Industrial Automation, Labeling & Identification, Security, Theft Prevention and Traceability

Contents

1 x people counter IRC 6637SAW, 1 x assembly device.

Footnotes
Coverage Varies based on mounting height: @2.5m = 2.27m x 1.63m @4.0m = 4.41m x 3.16m
