Portable HDMI Pattern Generator-

Product Overview

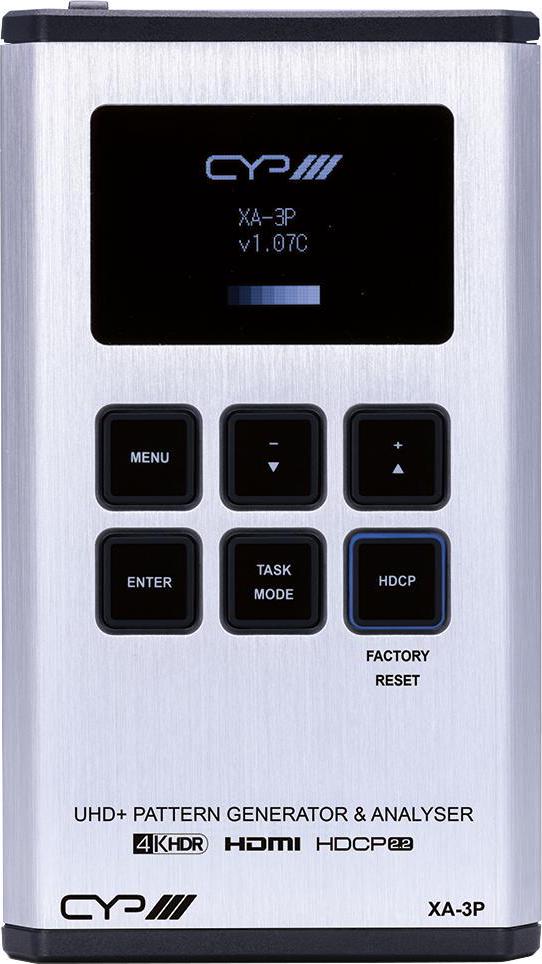

The XA-3P is the perfect installation partner for an AV installer, providing a convenient way to test and verify all aspects of an HDMI Signal Path, including the source and the sink. As well as being HDMI 2.0a and HDCP v1.4/2.2 compliant, the unit has a number of testing features including, System Analysing, Cable Testing, Pattern Generator and EDID Management. The XA-3P also has scaling functionality enabling the user to down-scale a 4K UHD Source to 1080p in Analyser mode.

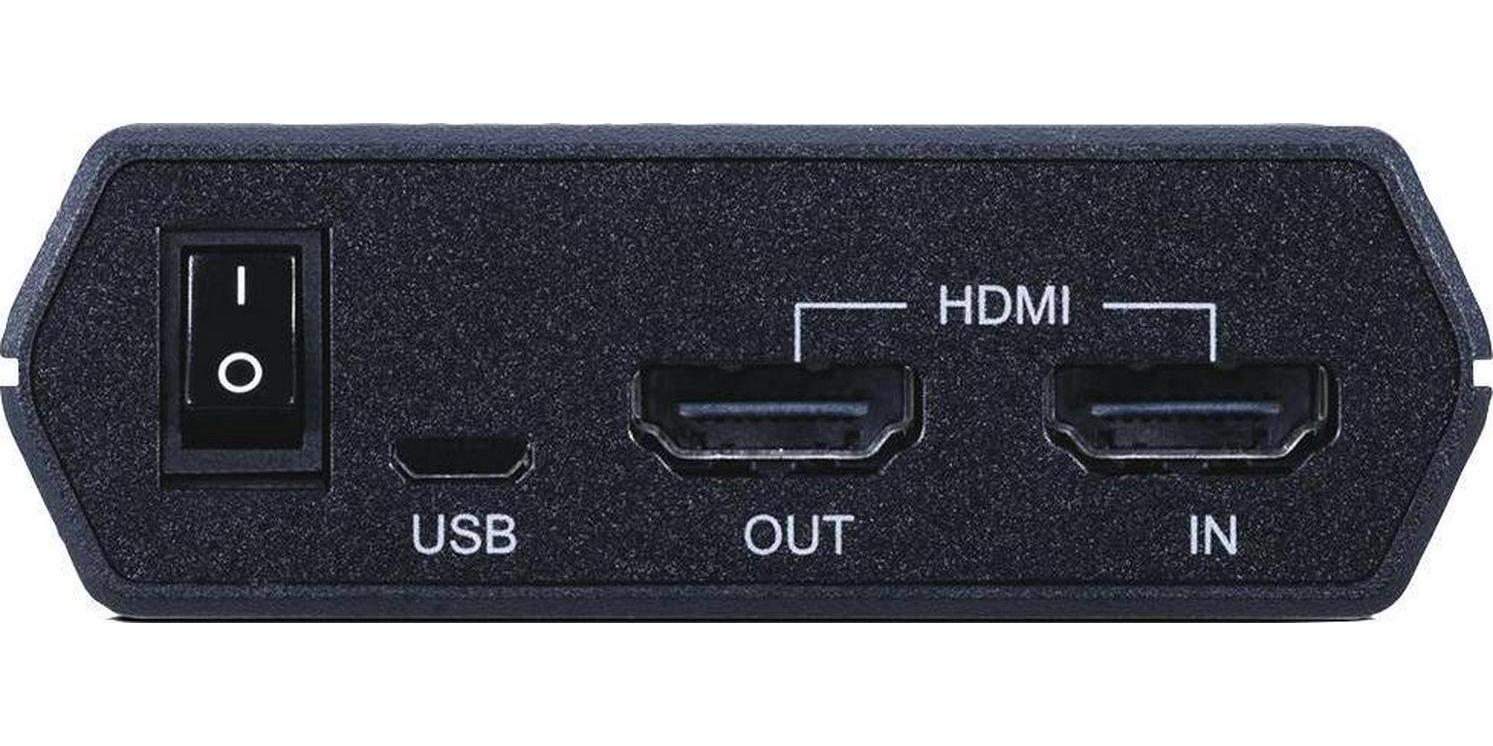

– HDMI I/O with 18Gbps (6G) 4K UHD support
– HDCP v1.4/v2.2 Compliant
– Supports HD resolutions up to 3840×2160 @ 60Hz (YUV 4:4:4, 8-bit) and 4096×2160 @ 60Hz (YUV 4:4:4, 8-bit)
– Supports video pass-through
– Built-in down-scaler, 4K to 1080p
– SCDC Input/output monitor
– HDMI Packet data analysis
– 23x Selectable output resolutions available in Test Pattern mode
– 11x Selectable output patterns available in Test Pattern mode
– HDMI 2.0 Cable Test option with support for 5V and Hot-Plug detection
– Supports generation of sinewave audio up to LPCM 8-channel and analysis of the source audio signal
– EDID Managment support with 10x preset default EDIDs and 10x user EDID slots from connected sinks
– LED Display with real time data feedback and current status information
– Battery operated (not supplied) or USB powered (USB cable supplied)
