Powerswitch AC Mains Relay Switch for IoT with Voltage Trigger-

Product Overview

The KPS1 is a high quality module designed for easy switching of mains power up to 10A. The output can be switched on or off by contact closure or a low voltage trigger. The KPS1 features completely isolated voltage control and terminals connections to ensure safe and reliable operation.

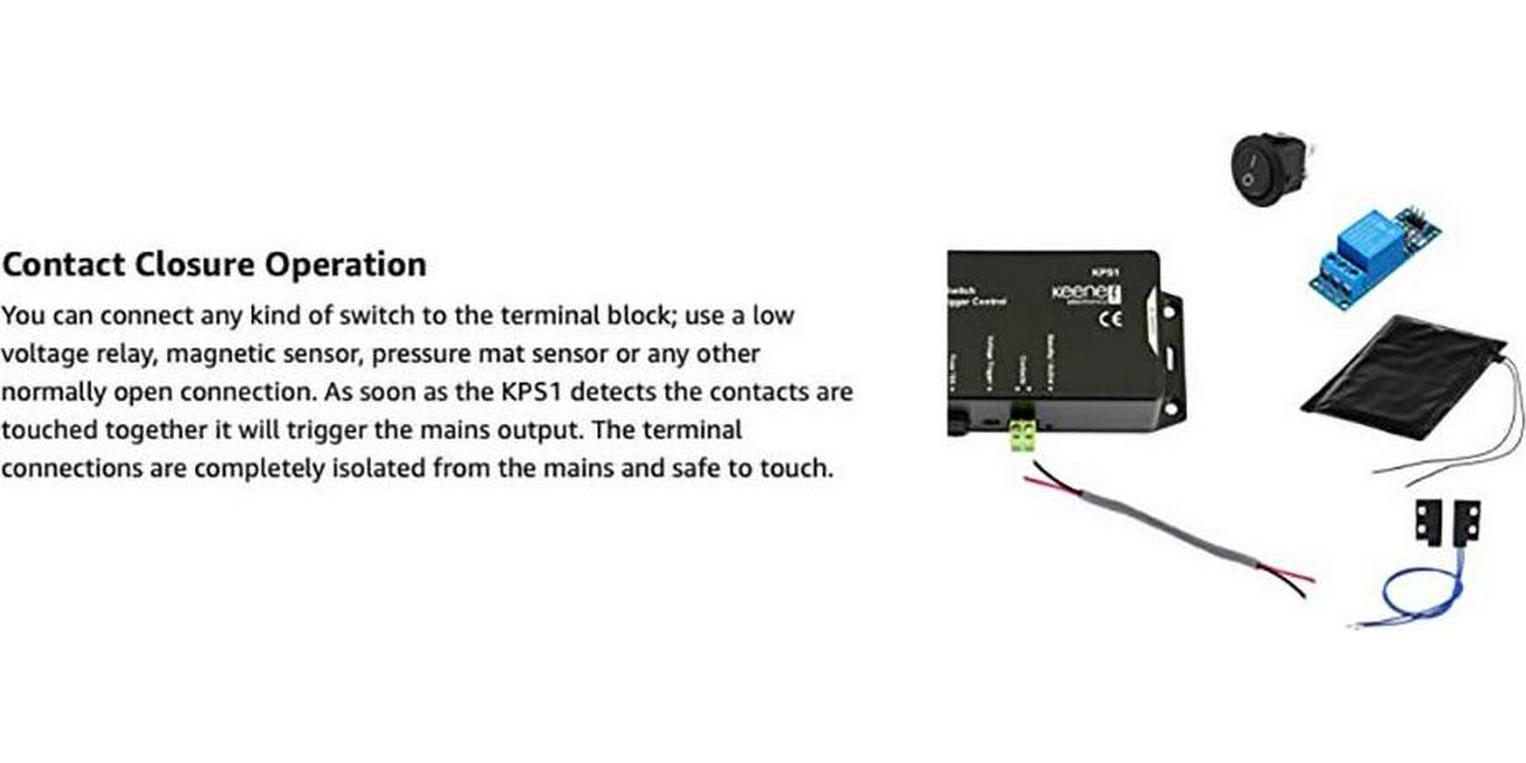

– 2-Pin contact closure trigger for control by low voltage relays or external switch, ground referenced 6V sense voltage

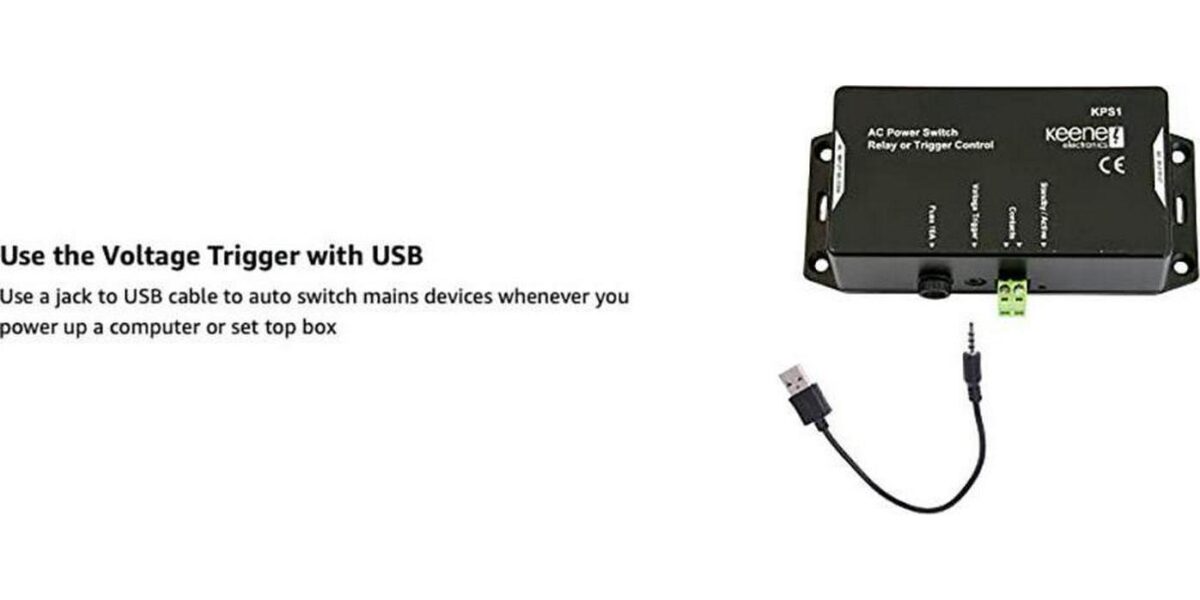

– 3.5mm Socket for continuous voltage trigger (isolated) 4V-14V DC with automatic polarity and pin selection

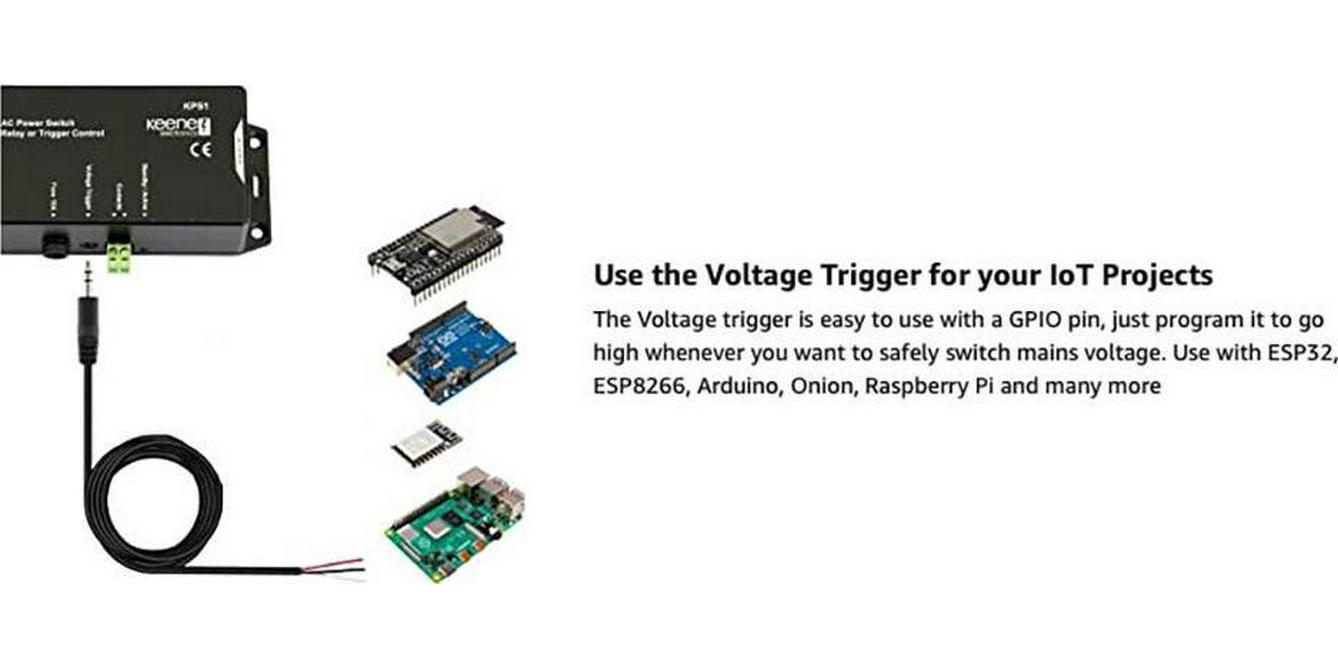

– Can be controlled directly via GPIO for easy integration into IoT projects
– Switch mode isolated internal 6V power supply
– World wide operation 90V-250V AC, 50/60Hz
– Built-in 250V AC varistors for mains spike suppression
– Insulated housing design with IEC mains input/output for easy installation
– Fully assembled and ready to use
– Dimensions (HxWxD): 40x121x66mm

Contents

Powerswitch, IEC female to UK plug input lead, IEC male to UK socket cable and user guide
