RF Choke, RF Choke, B82144A LBC Series, 1 H, 2.2 A, 0.08 ohm, 10%, 200 MHz-

Product Overview

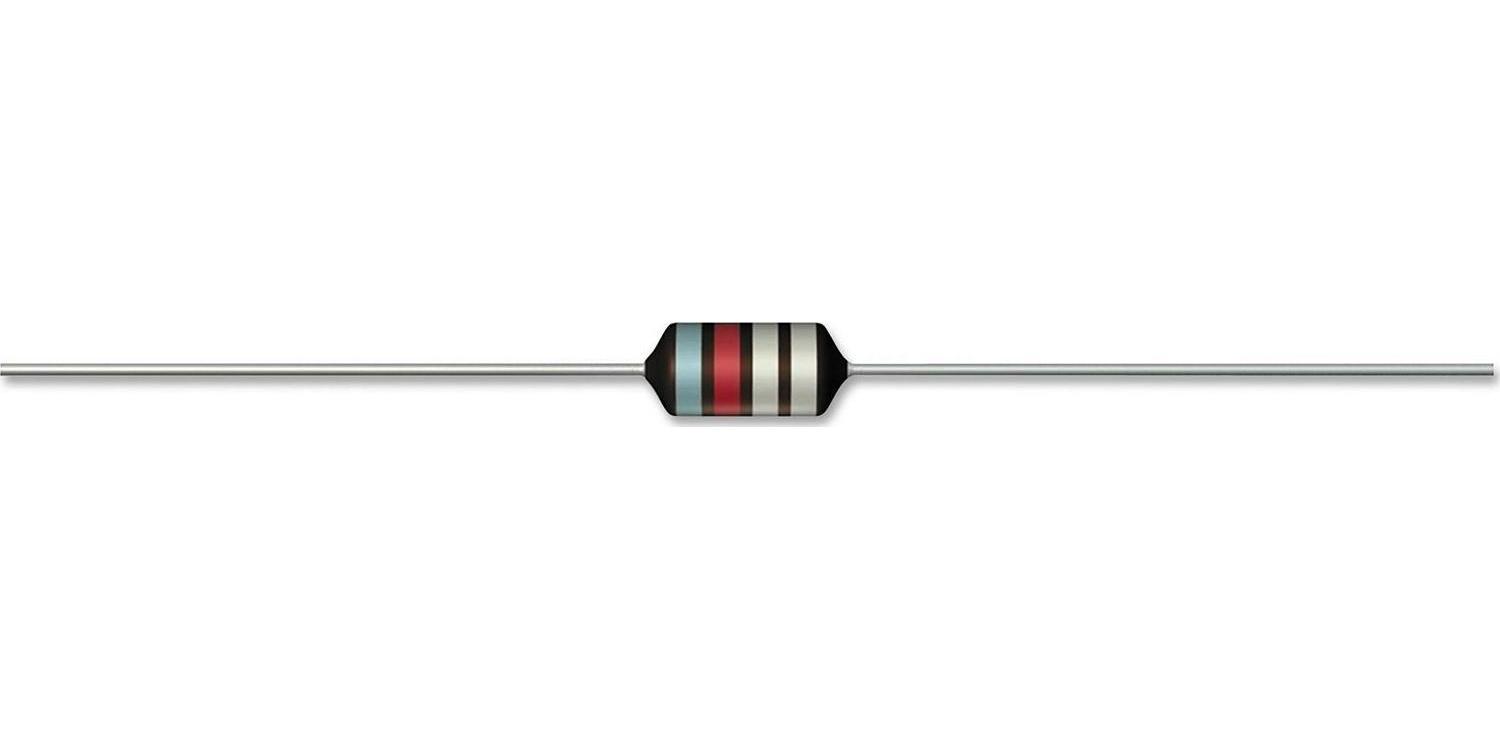

The B82144A series from EPCOS are axial leaded bobbin core (BC) RF chokes for general purpose applications. These chokes are made up of large ferrite drum core with enamel copper wire winding. B82144A series RF chokes are suitable for RF blocking and filtering, decoupling and interference suppression, antenna systems and energy saving lamps.

– Wide inductance value ranges from 1 H to 100000 H
– Rated current range from 20mA to 2200mA
– Operating temperature range 40°C
– ±3%, ±5% and ±10% tolerance
– Base material is CuAg0.1
– Compliant to IEC 60062 standards
– Compliant to climatic category IEC 60068-155/125/56

Applications

Consumer Electronics, Portable Devices, Power Management, Industrial, Automotive
