Thermocouple Type K, Platinum Wire Wound Detector Element, -40C to 1100C, 100mm-

Product Overview

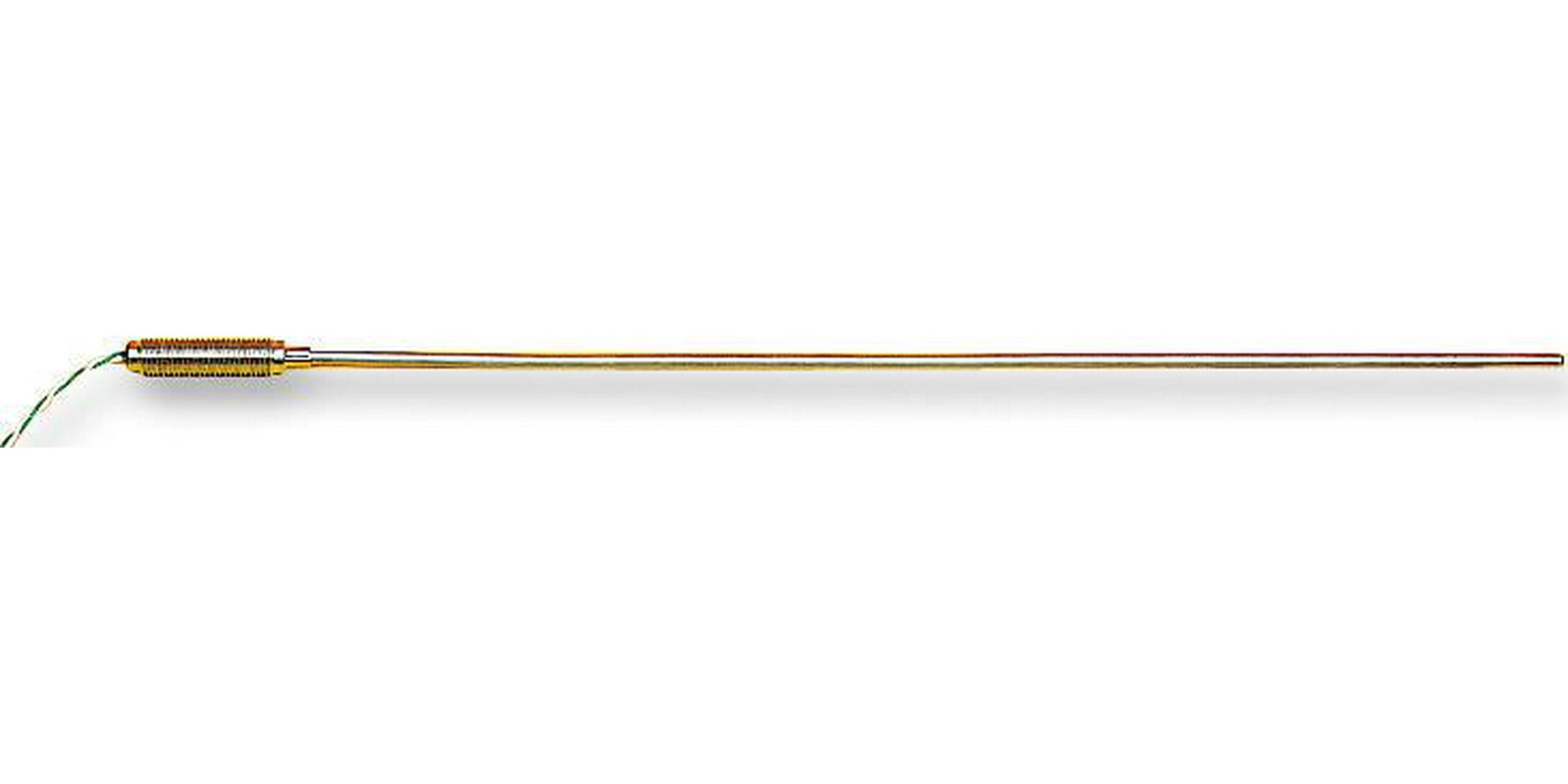

KMI/1.5X150 (IEC) is an IEC mineral insulated Type K thermocouple with threaded pot and tails. 310 stainless steel provides good corrosion & and oxidation resistance to suit a wide range of processes, satisfactorily operates in sulphur bearing atmospheres. Typical applications include brick and cement kilns, glass industry, heat treatment and annealing furnaces, power stations, flues, heat exchangers etc.

– 1.5mm probe diameter, 150mm length
– Mineral insulated probe with stainless steel with M8 x 1.0mm pitch threaded pot seal & tails
– Highly flexible, sheath can be bent/formed to suit many applications and processes
– Insulated hot junction, probe temperature range from -40°C to +1100°C
– M8 x 1.0mm fine pitch threaded pot seal (200°C)
– Termination is 100mm PFA twin twisted 7/0.2mm tails, colour coded in accordance with IEC 584
– Sensor type is Type K (nickel chromium/nickel aluminium) to IEC 584
– Single element, junction insulated from sheath (offer protection against spurious electrical signal)

Footnotes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
