WiFi and Bluetooth WB2 Development Board, DIP 38-

Product Overview

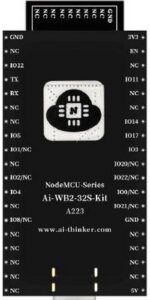

AI-WB2-32S-KIT is a development board designed for Ai-WB2-32S modules. Ai-WB2-32S is a Wi-Fi& BT module developed by Shenzhen Ai-Thinker TechnologyCo., LTD. The module is equipped with BL602 chip as the core processor and supports Wi-Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low-power 32-bit RISC CPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR and GPIO. It can be widely used in Internet of Things (IoT), mobile devices, wearable electronic devices, smart home and other fields.

– DIP-38 package, on-board PCB antenna
– Wi-Fi security support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
– Support 20MHz bandwidth and max rate is 72.2Mbps
– Bluetooth BLE 5.0, Bluetooth mesh
– Support station + BLE mode, station + SoftAP + BLE mode
– Secure start-up, supports mirroring with ECC-256 signature
– Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTRmode
– Support AES 128/192/256-bit encryption engine, SHA-1/224/256, true Random number generator (TRNG)
– Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
– Size – 55.05×25.4mm
